 Volume 11, Issue 6 (June 2024), Pages: 178-193

----------------------------------------------

 Original Research Paper

Mineralogical transformations in the Fe-laterite profiles of Saudi Arabia: A study of weathering dynamics and secondary lateritization

 Author(s):

 Rami A. Bakhsh 1, Ali A. Mesaed 2, 3, *

 Affiliation(s):

 1Department of Mineral Resources and Rocks, Faculty of Earth Sciences, King Abdulaziz University, P.O. Box 80206, Jeddah 21589, Saudi Arabia
 2Geo-Exploration Techniques Department, Faculty of Earth Sciences, King Abdulaziz University, P.O. Box 80206, Jeddah 21589, Saudi Arabia
 3Geology Department, Faculty of Sciences, Cairo University, Giza, Egypt

 Full text

  Full Text - PDF

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0003-3237-8406

 Digital Object Identifier (DOI)

 https://doi.org/10.21833/ijaas.2024.06.020

 Abstract

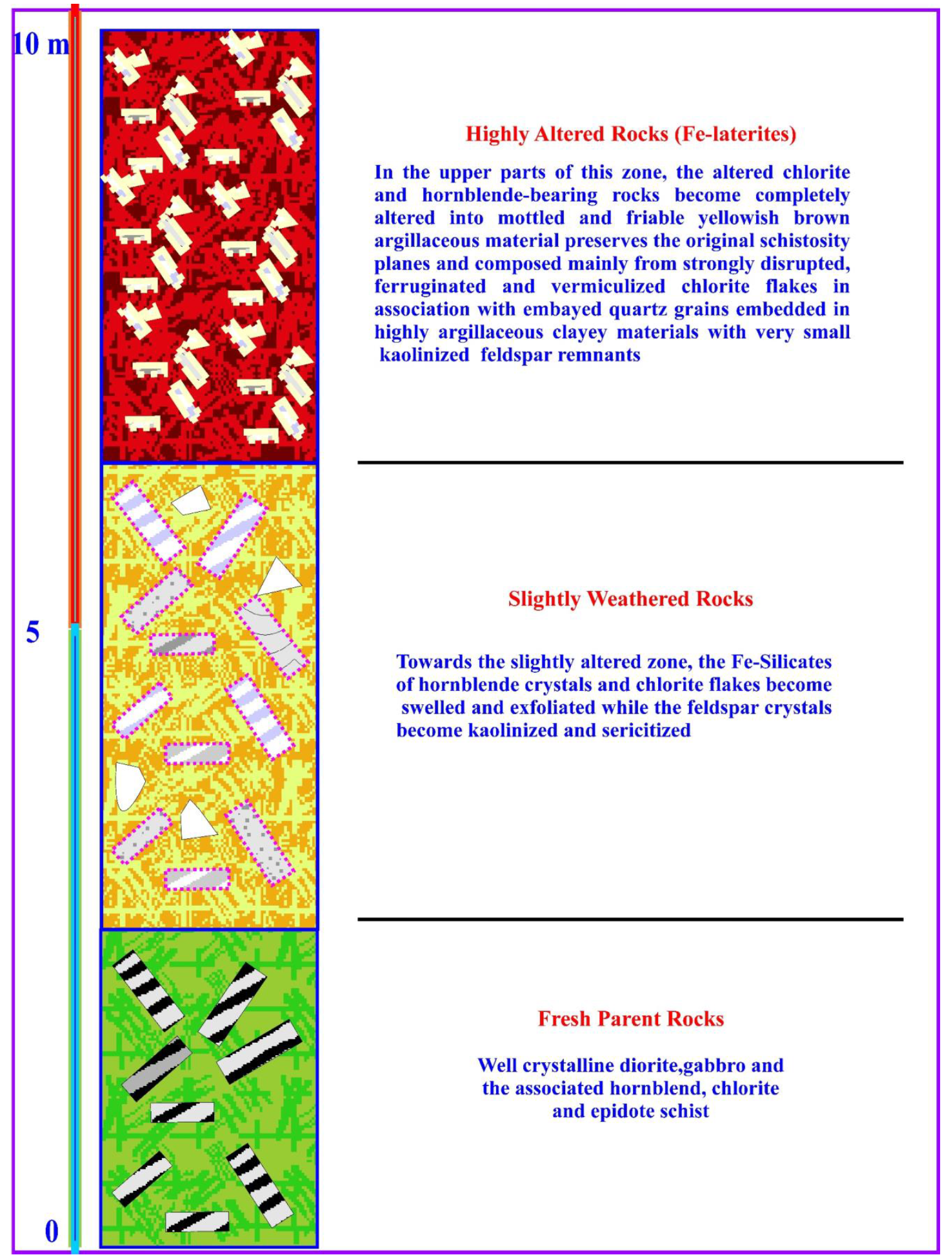

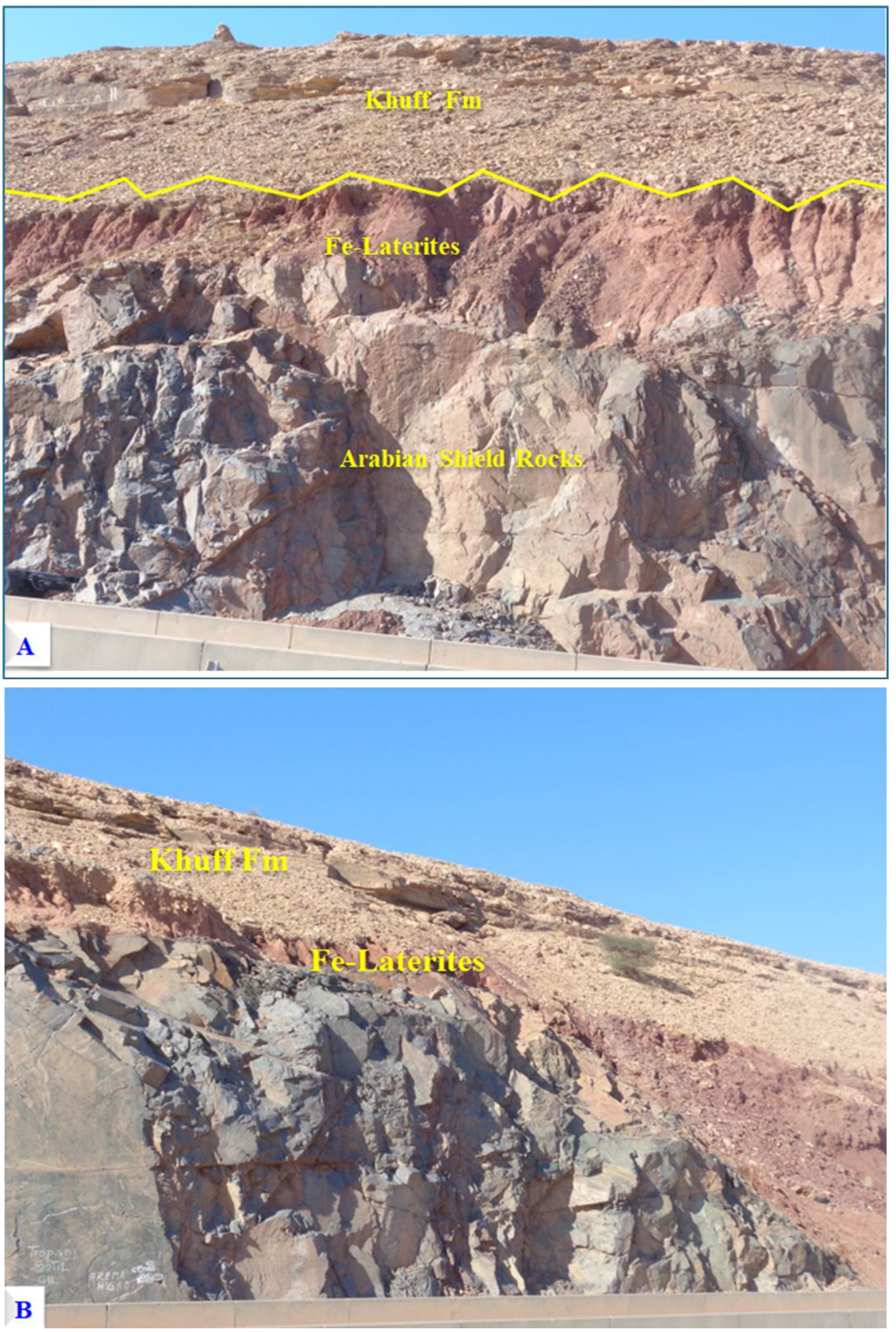

This study examines an iron-rich laterite profile, 4 to 9 meters thick, located between the ancient Precambrian Arabian Shield rocks and the younger Phanerozoic layers in Saudi Arabia. The profile begins with hard parent rocks composed of quartz diorite and gabbro containing iron-silicate. As these rocks weather, they become progressively softer and more clay-like, forming slightly and highly weathered argillaceous rocks. The Fe-laterite profile includes three main layers: the original parent rocks, the slightly altered rocks (saprolite), and the highly altered argillaceous rocks at the top. Samples from different layers of the weathering profile were collected and analyzed for their mineral content. The original quartz diorite and gabbro primarily consist of feldspars, hornblende, chlorite, and quartz. In the slightly altered layer, the hornblende and chlorite expand and peel apart, while the feldspar crystals transform into kaolinite and sericite. In the highly altered top layer, the remaining iron-silicate minerals show significant curling and breaking apart, and the surrounding clay becomes more uniform, composed mainly of mixed dark iron-oxyhydroxides and a light aluminum- and silicon-rich gel with small amounts of quartz. The study explores the progressive stages of weathering, including: a) Initial breakdown of iron-silicate minerals through hydrolysis and oxidation, b) Further destruction of these minerals and the formation of goethite, hematite, and kaolinite, c) Final stages where kaolinite and small microcrystalline quartz aggregates form from silica leached from higher layers, a process known as secondary lateritization.

 © 2024 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords

 Fe-laterite, Weathering profile, Mineralogical changes, Hydrolysis and oxidation, Secondary lateritization

 Article history

 Received 7 January 2024, Received in revised form 21 May 2024, Accepted 9 June 2024

 Acknowledgment

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Bakhsh RA and Mesaed AA (2024). Mineralogical transformations in the Fe-laterite profiles of Saudi Arabia: A study of weathering dynamics and secondary lateritization. International Journal of Advanced and Applied Sciences, 11(6): 178-193

 Permanent Link to this page

 Figures

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12

 Tables

 No Table

----------------------------------------------

 References (31)
