 Volume 10, Issue 9 (September 2023), Pages: 68-74

----------------------------------------------

 Original Research Paper

Exploring the impact of initial design techniques on area, timing, and power in technology mapped designs: A case study on 32-bit arithmetic logic unit

 Author(s):

 Hammad H. Alshortan, Yasser Almalaq, Muhammad Imran Khan *

 Affiliation(s):

 Department of Electrical Engineering, College of Engineering, University of Hail, Hail, Saudi Arabia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0002-7844-9567

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2023.09.008

 Abstract:

This research paper investigates the influence of different initial design techniques on the area, timing, and power aspects of technology-mapped designs. As a practical case study, we undertake the design and analysis of a 32-bit arithmetic logic unit (ALU) utilizing two distinct adder approaches. The ALU, a fundamental component of all processors, comprises three major units: the Adder responsible for signed and unsigned number addition and subtraction, the Logic unit which handles bitwise logical operations, and the Shifter unit facilitates arithmetic and logical shift operations. The two adder designs are based on the ripple carry method (ALU_RCA) and the Sklansky method (ALU_SKL), respectively. The design and analysis process involved utilizing established toolsets from Cadence, including NCSIM for simulation and verification, RTL Compiler for logic synthesis, static timing analysis and power estimation, and SOC encounter tool for floorplanning and layout. Through this investigation, we aim to shed light on the varying performance implications of different initial design approaches in technology-mapped designs.

 © 2023 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Initial design techniques, Technology mapped designs, Arithmetic logic unit, Ripple carry method, Sklansky method

 Article History: Received 27 March 2023, Received in revised form 31 July 2023, Accepted 3 August 2023

 Acknowledgment

This research has been funded by the Scientific Research Deanship at the University of Ha’il–Saudi Arabia through project number GR-22 106.”

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Alshortan HH, Almalaq Y, and Khan MI (2023). Exploring the impact of initial design techniques on area, timing, and power in technology mapped designs: A case study on 32-bit arithmetic logic unit. International Journal of Advanced and Applied Sciences, 10(9): 68-74

 Permanent Link to this page

 Figures

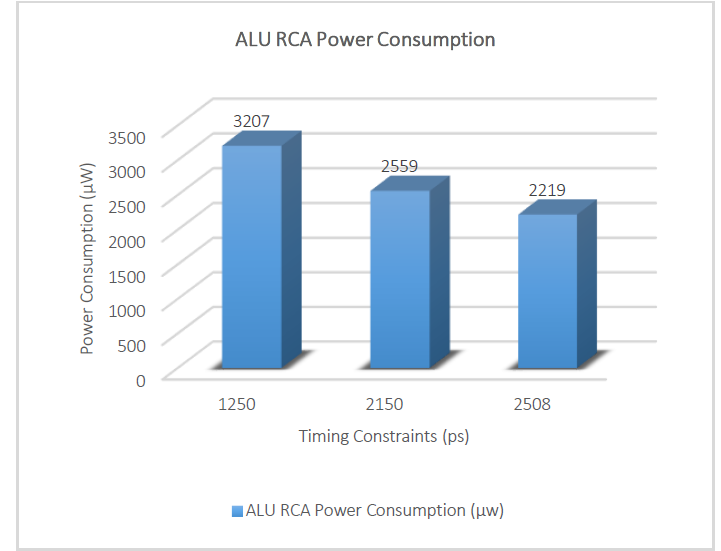

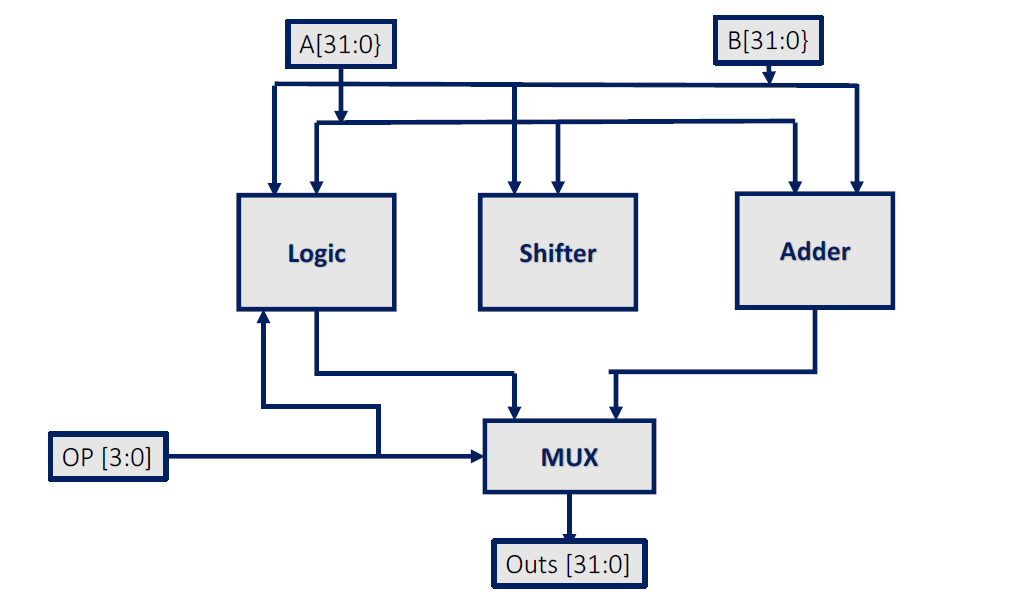

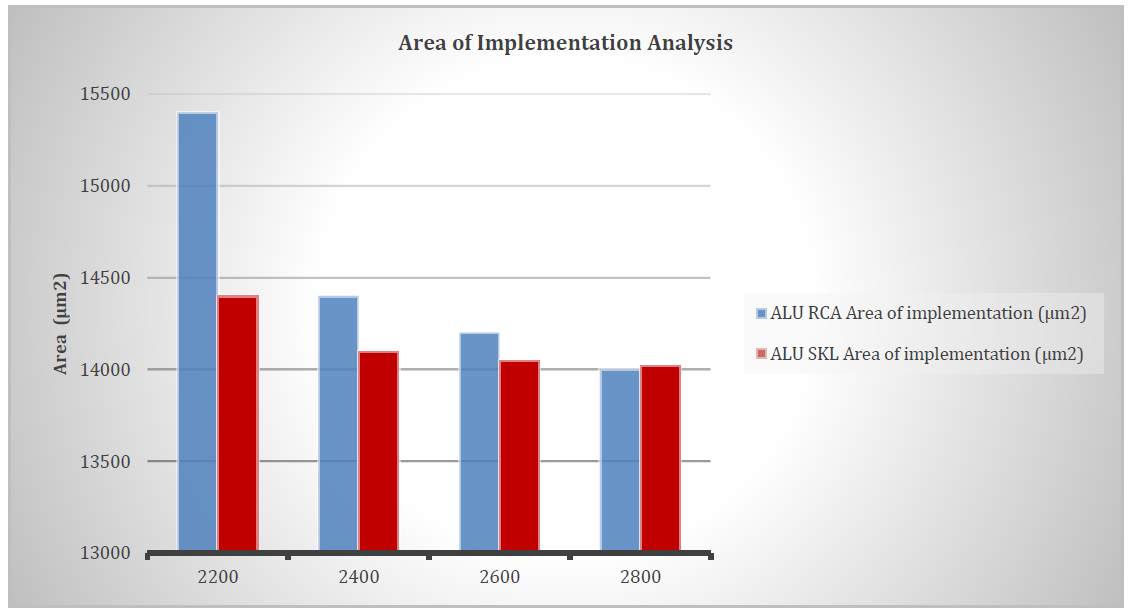

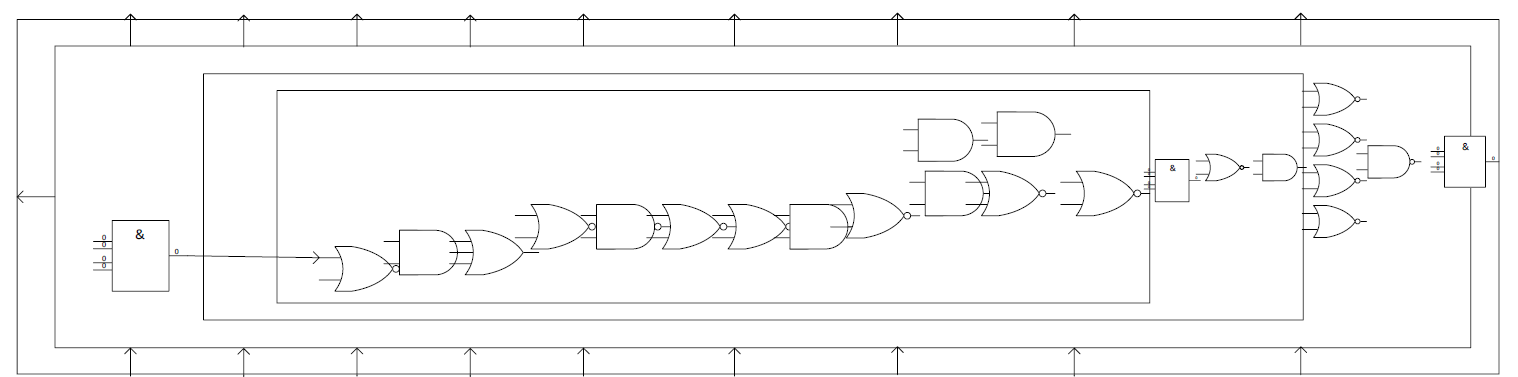

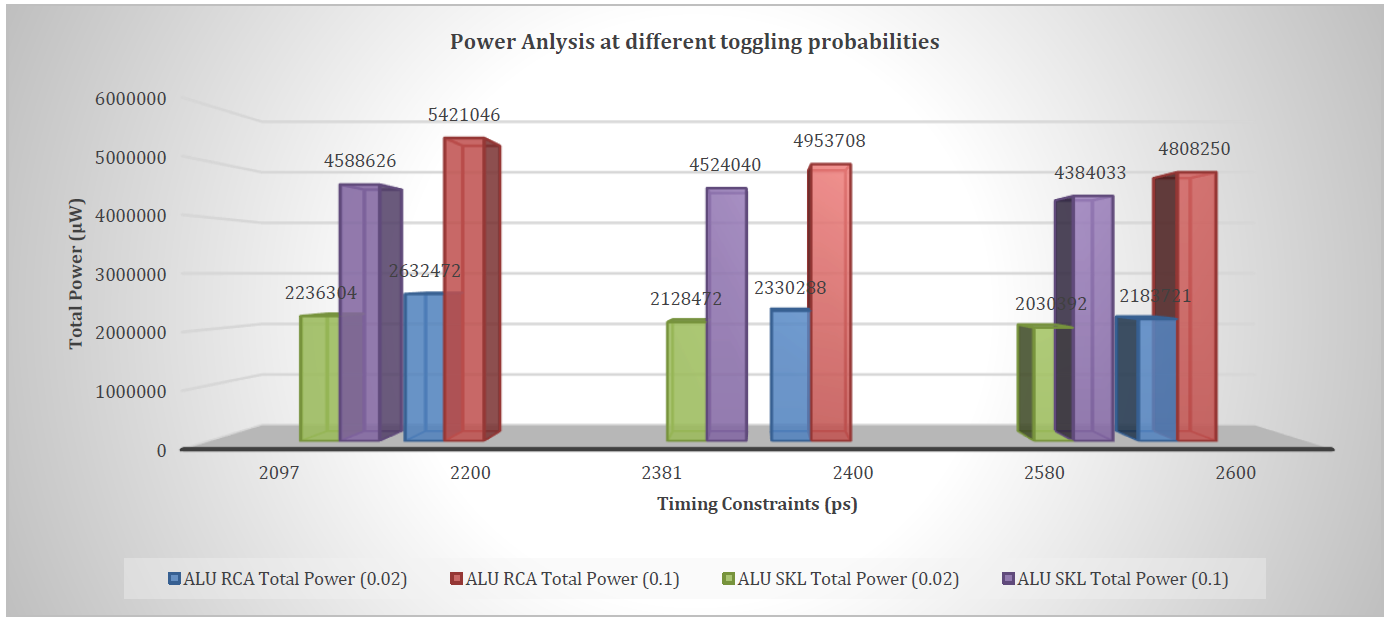

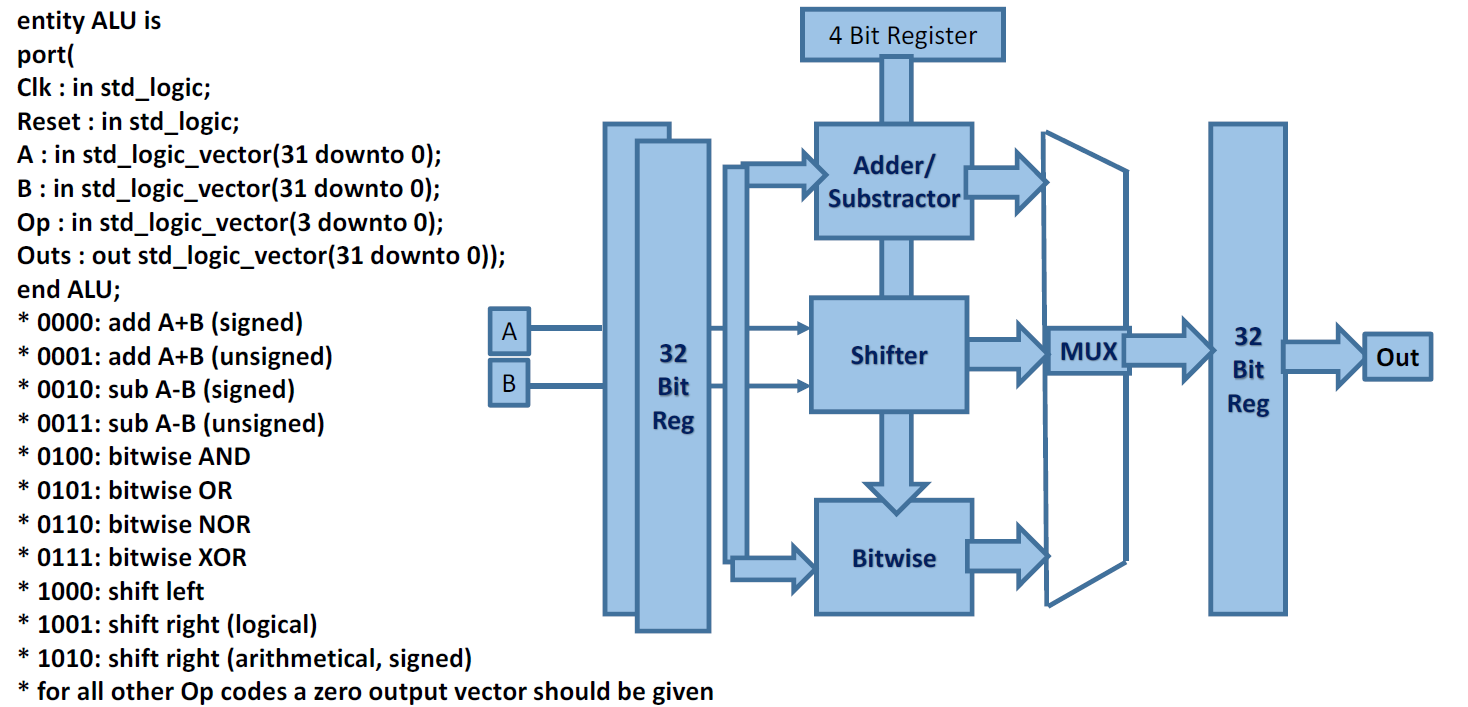

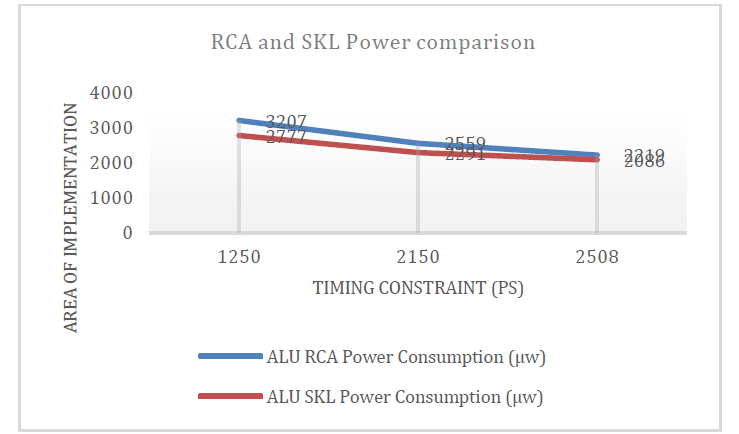

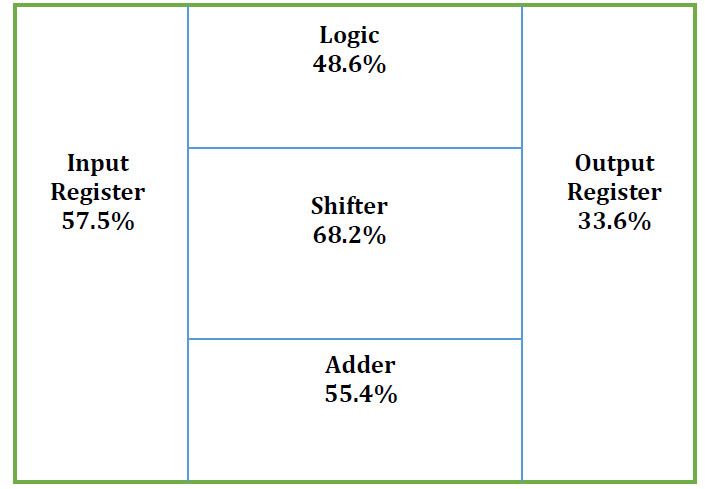

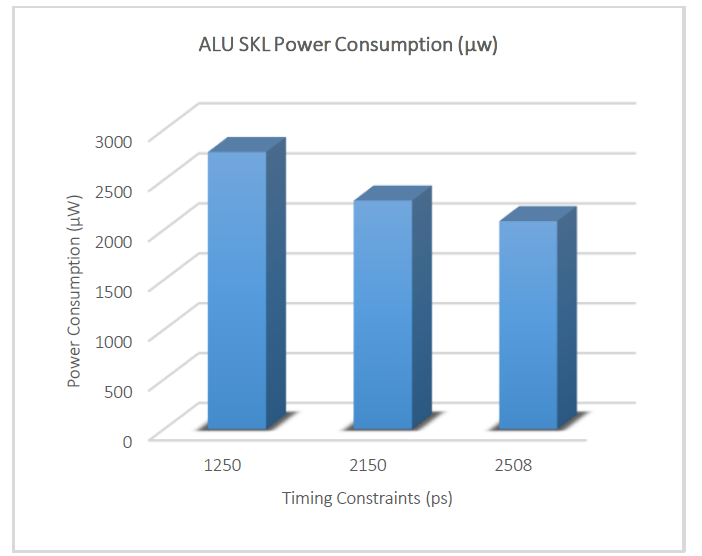

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10

 Tables

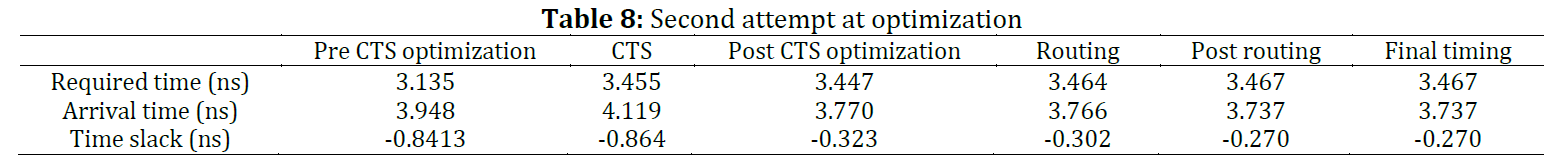

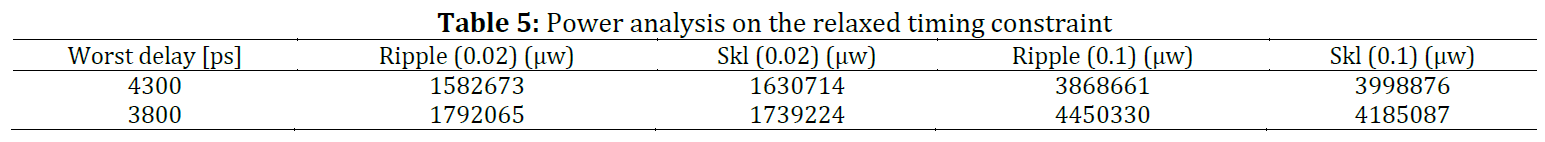

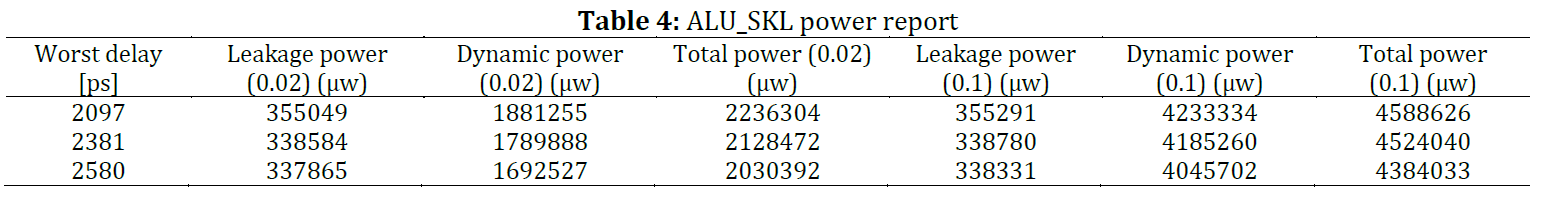

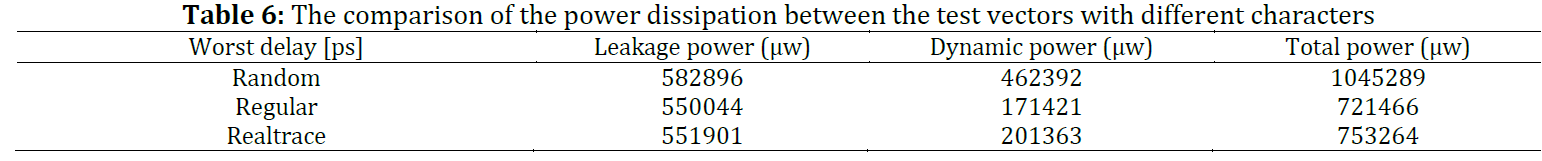

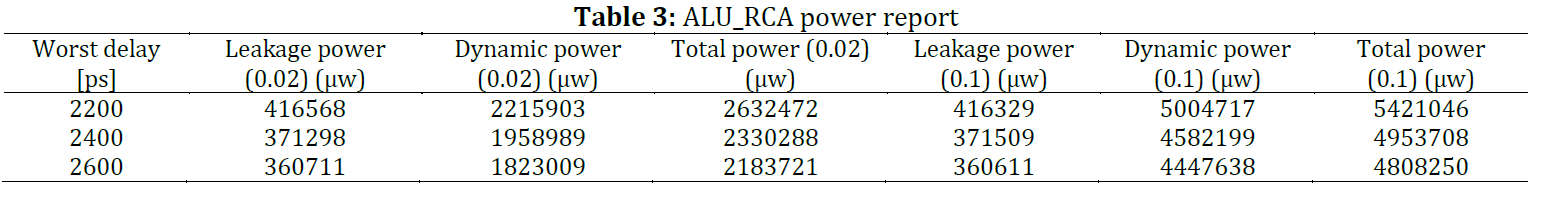

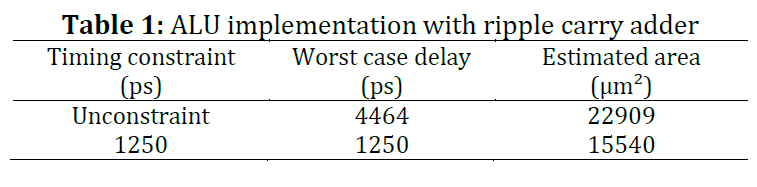

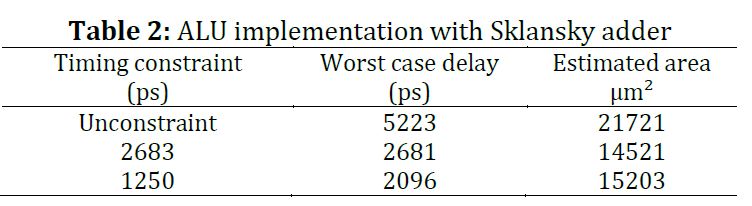

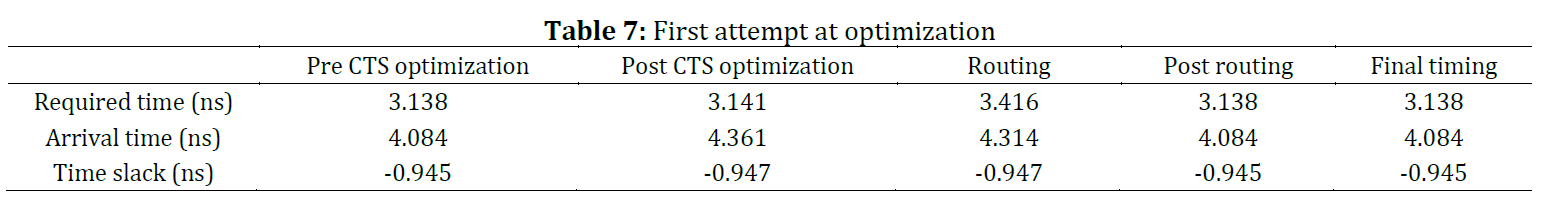

 Table 1 Table 2 Table 3 Table 4 Table 5 Table 6 Table 7 Table 8

----------------------------------------------
