 Title: On effects of viscous damping of harmonically varying axially moving string

 Author(s): Sanaullah Dehraj *, Rajab A. Malookani, Sajad H. Sandilo

 Affiliation(s):

 Department of Mathematics and Statistics, Quaid-e-Awam University of Engineering, Sciences and Technology, Nawabshah, Pakistan

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0001-8453-3389

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2020.07.006

 Abstract:

In this study, the stability of an axially moving string under the influence of viscous damping in terms of transverse vibrations has been examined. Mathematically, an axially moving string can be expressed as a linear-homogenous partial differential equation with the initial and boundary conditions. The axial speed of string is taken to be time-varying, sinusoidal, and small compared to wave velocity. In order to approximate the exact solutions of the initial-boundary value problem, a Fourier-expansion method, together with the two timescales perturbation method, has been used. General resonance case and the detuning case have been studied in detail. The total energy of an infinite-dimensional coupled system has been obtained. Under certain values of the damping parameter, this total mechanical energy is either obtained to be bound or unbound. In addition, it turned out that there is a possibility of mode-truncation depending on the certain values of the damping parameter.

 © 2020 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Axially moving string, Viscous damping, Perturbation method, Internal resonance

 Article History: Received 12 December 2019, Received in revised form 29 March 2020, Accepted 30 March 2020

 Acknowledgment:

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The authors declare that they have no conflict of interest.

 Citation:

 Dehraj S, Malookani RA, and Sandilo SH (2020). On effects of viscous damping of harmonically varying axially moving string. International Journal of Advanced and Applied Sciences, 7(7): 48-55

 Permanent Link to this page

 Figures

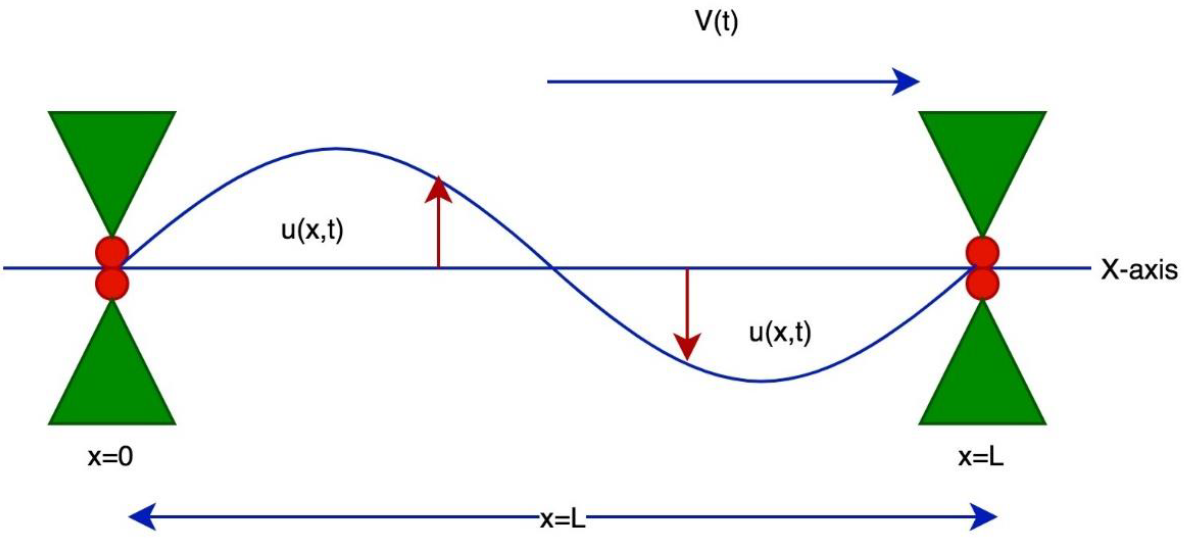

 Fig. 1

 Tables

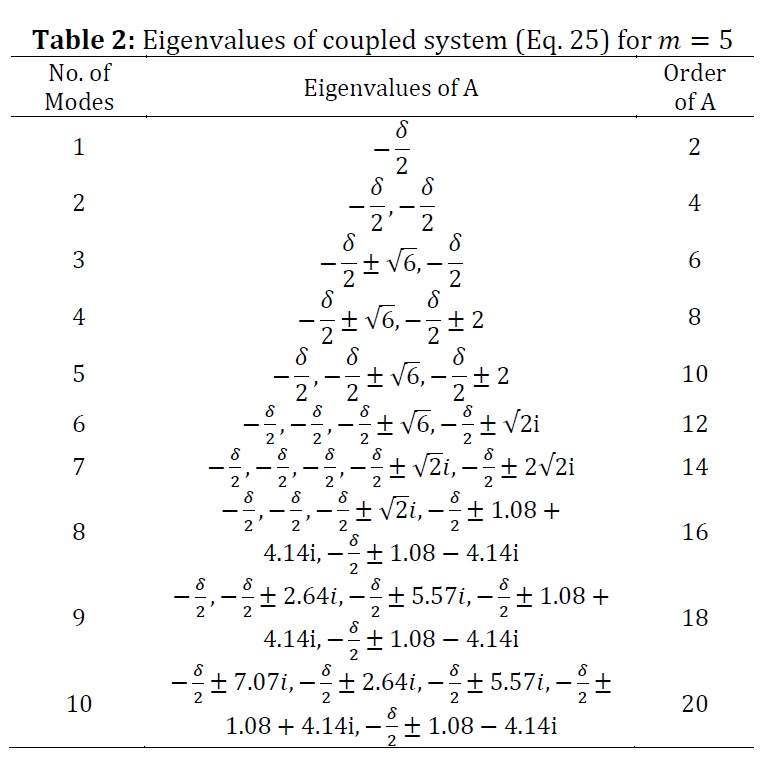

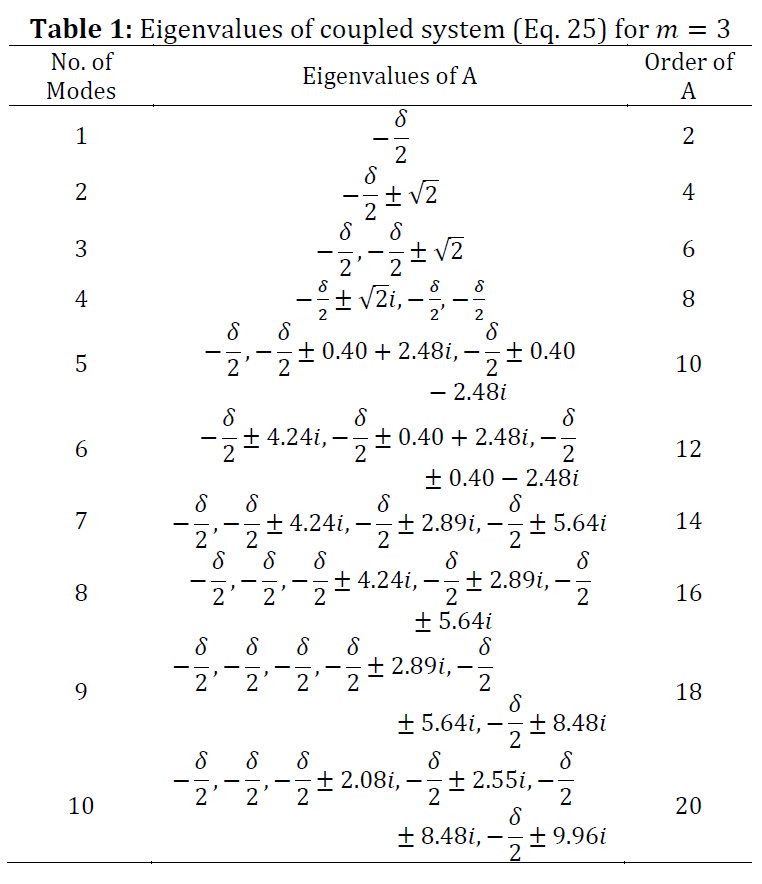

 Table 1 Table 2

----------------------------------------------

 References (20)

  1. Akkaya T and van Horssen WT (2017). On constructing a Green’s function for a semi-infinite beam with boundary damping. Meccanica, 52(10): 2251-2263. https://doi.org/10.1007/s11012-016-0594-9   [Google Scholar]
  2. Akkaya T and van Horssen WT (2019). On boundary damping to reduce the rain–wind oscillations of an inclined cable with small bending stiffness. Nonlinear Dynamics, 95(1): 783-808. https://doi.org/10.1007/s11071-018-4596-0   [Google Scholar] PMid:30930540 PMCid:PMC6404634
  3. Chen LQ (2005). Analysis and control of transverse vibrations of axially moving strings. Applied Mechanics Reviews, 58(2): 91–116. https://doi.org/10.1115/1.1849169   [Google Scholar]
  4. Darmawijoyo and van Horssen WT (2002). On boundary damping for a weakly nonlinear wave equation. Nonlinear Dynamics, 30(2): 179-191. https://doi.org/10.1023/A:1020473930223   [Google Scholar]
  5. Darmawijoyo, van Horssen WT, and Clément PH (2003). On a Rayleigh wave equation with boundary damping. Nonlinear Dynamics, 33(4):399–429. https://doi.org/10.1023/B:NODY.0000009939.57092.ad   [Google Scholar]
  6. Gaiko NV and van Horssen WT (2015). On the transverse, low frequency vibrations of a traveling string with boundary damping. Journal of Vibration and Acoustics, 137(4): 041004. https://doi.org/10.1115/1.4029690   [Google Scholar]
  7. Krenk S (2000). Vibrations of a taut cable with an external damper. Journal of Applied Mechanics, 67(4): 772-776. https://doi.org/10.1115/1.1322037   [Google Scholar]
  8. Maitlo AA, Sandilo SH, Shaikh AH, Malookani RA, and Qureshi S (2016). On aspects of viscous damping for an axially transporting string. Science International, 28(4): 3721-3727.   [Google Scholar]
  9. Malookani RA and van Horssen WT (2015). On resonances and the applicability of Galerkin׳ s truncation method for an axially moving string with time-varying velocity. Journal of Sound and Vibration, 344: 1-17. https://doi.org/10.1016/j.jsv.2015.01.051   [Google Scholar]
  10. Malookani RA, Dehraj S, and Sandilo SH (2019). Asymptotic approximations of the solution for a traveling string under boundary damping. Journal of Applied and Computational Mechanics, 5(5): 918-925.   [Google Scholar]
  11. Marynowski K and Kapitaniak T (2007). Zener internal damping in modelling of axially moving viscoelastic beam with time-dependent tension. International Journal of Non-Linear Mechanics, 42(1): 118-131. https://doi.org/10.1016/j.ijnonlinmec.2006.09.006   [Google Scholar]
  12. Oz HR, Pakdemirli M, and Ozkaya E (1998). Transition behaviour from string to beam for an axially accelerating material. Journal of Sound and Vibration, 215(3): 571-576. https://doi.org/10.1006/jsvi.1998.1572   [Google Scholar]
  13. Pakdemirli M and Ulsoy AG (1997). Stability analysis of an axially accelerating string. Journal of Sound and Vibration, 203(5): 815-832. https://doi.org/10.1006/jsvi.1996.0935   [Google Scholar]
  14. Rossikhin Y and Shitikova MV (2013). Nonlinear dynamic response of a fractionally damped suspension bridge subjected to small external force. International Journal of Mechanics, 7(3): 155-163.   [Google Scholar]
  15. Sandilo SH and van Horssen WT (2012). On boundary damping for an axially moving tensioned beam. Journal of Vibration and Acoustics, 134(1): 011005. https://doi.org/10.1115/1.4005025   [Google Scholar]
  16. Sandilo SH, Malookani RA, and Sheikh AH (2016). On vibrations of an axially moving beam under material damping. IOSR Journal of Mechanical and Civil Engineering, 13(05): 56–61. https://doi.org/10.9790/1684-1305045661   [Google Scholar]
  17. Shahruz SM (2009). Stability of a nonlinear axially moving string with the Kelvin–Voigt damping. Journal of Vibration and Acoustics, 131(1): 014501. https://doi.org/10.1115/1.3025835   [Google Scholar]
  18. Suweken G and van Horssen WT (2003). On the transversal vibrations of a conveyor belt with a low and time-varying velocity. Part I: The string-like case. Journal of Sound and Vibration, 264(1): 117-133. https://doi.org/10.1016/S0022-460X(02)01168-9   [Google Scholar]
  19. Wickert JA and Mote CD (1990). Classical vibration analysis of axially moving continua. Journal of Applied Mechanics, 57(3): 738–744. https://doi.org/10.1115/1.2897085   [Google Scholar]
  20. Zhang L and Zu JW (1998). Non-linear vibrations of viscoelastic moving belts, part I: Free vibration analysis. Journal of Sound and Vibration, 216(1): 75-91. https://doi.org/10.1006/jsvi.1998.1688   [Google Scholar]
