 Volume 6, Issue 2 (February 2019), Pages: 39-47

----------------------------------------------

 Original Research Paper

 Title: Dynamic response of bridge-vehicle three phases interaction considering the effects of sudden heavy braking

 Author(s): Hoa P. Hoang 1, Trung D. Pham 2, *, Quang T. Pham 2, Phuoc T. Nguyen 3

 Affiliation(s):

 1Department of Construction of Bridge and Road, University of Science and Technology, The University of Danang, Danang, Vietnam
 2Department of Civil Engineering, Mientrung University of Civil Engineering, 24 Nguyen Du St., Tuy Hoa, Vietnam
 3Department of Civil Engineering, Ho Chi Minh City Open University, 97 Vo Van Tan St., Ho Chi Minh, Vietnam

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0001-8629-0640

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2019.02.007

 Abstract:

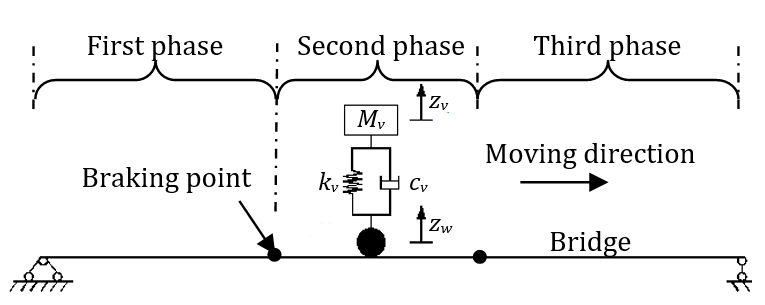

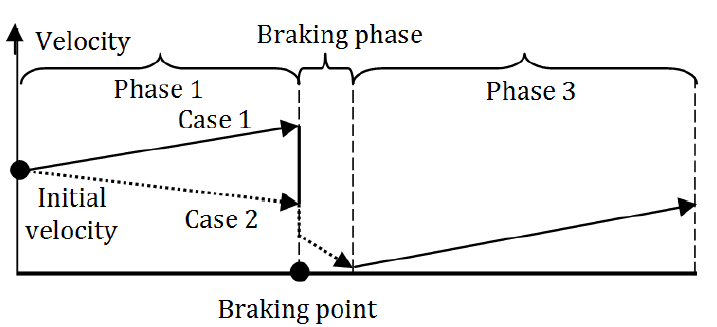

The main purpose of this study is to present a new approach for analyzing the dynamic response of bridge-vehicle interaction considering effects of sudden heavy braking force. The interaction between the bridge and vehicle is described by three phases which show quite agree with the real natural response of the moving vehicle, including before braking phases, sudden heavy braking phase and after braking phase. Especially, in the second phase, the vehicle can even stop in a short the time to the time t2 and the sliding of the wheel also can even occur in this case. From the three above phases, the governing equation of the motion of the bridge-vehicle interaction was established based on the finite element method and dynamic balance principle. And then, the influence of characteristic parameters of the bridge and moving vehicle on the dynamic response of the bridge-vehicle interaction was analyzed detail. The numerical investigation results showed that the new approach for bridge-vehicle interaction is the more increasing dynamic response of the bridge and moving vehicle than previous approaches. It can be seen that the study has meaning practice and it quite agrees to describe the true behavior of structure-vehicle interaction.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Bridge-vehicle interaction, Sudden heavy braking vehicle, Dynamic response of the bridge, Finite element method

 Article History: Received 20 August 2018, Received in revised form 14 December 2018, Accepted 15 December 2018

 Acknowledgement:

No Acknowledgement

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.

 Citation:

 Hoang HP, Pham TD, Pham QT et al. (2019). Dynamic response of bridge-vehicle three phases interaction considering the effects of sudden heavy braking. International Journal of Advanced and Applied Sciences, 6(2): 39-47

 Permanent Link to this page

 Figures

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Fig. 18 Fig. 19 Fig. 20 Fig. 21

 Tables

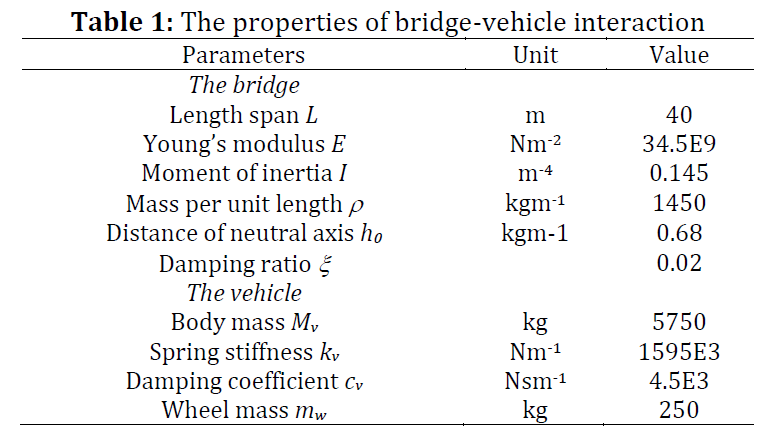

 Table 1

----------------------------------------------

 References (17)

  1. Ang KK, Thi T, and Hai L (2013). Track vibrations during accelerating and decelerating phases of high-speed rails. In the 13th East Asia-Pacific Conference on Structural Engineering and Construction, Sapporo, Japan: 1-9.   [Google Scholar]
  2. Azimi H, Galal K, and Pekau OA (2013). A numerical element for vehicle–bridge interaction analysis of vehicles experiencing sudden deceleration. Engineering Structures, 49: 792-805. https://doi.org/10.1016/j.engstruct.2012.12.031   [Google Scholar]
  3. Cantero D, Karoumi R, and O'Brien EJ (2014). Maximum total load effects in vehicle-bridge dynamic interaction problems for simply supported structures. In the 9th International Conference on Structural Dynamics, European Association for Structural Dynamics, Porto, Portugal: 1169-1174.   [Google Scholar]
  4. Daniel Ľ and Kortiš J (2014). Moving load effect on bridges. In the 3rd International Conference on Road and Rail Infrastructure CETRA, University of Zagreb, Spilt Dalmatia, Croatia: 535-539.   [Google Scholar]
  5. Deng L and Wang F (2015). Impact factors of simply supported prestressed concrete girder bridges due to vehicle braking. Journal of Bridge Engineering, 20(11): 06015002. https://doi.org/10.1061/(ASCE)BE.1943-5592.0000764   [Google Scholar]
  6. Esmailzadeh E and Jalili N (2003). Vehicle–passenger–structure interaction of uniform bridges traversed by moving vehicles. Journal of Sound and Vibration, 260(4): 611-635. https://doi.org/10.1016/S0022-460X(02)00960-4   [Google Scholar]
  7. Huang X, Fu CC, Zhuo W, Yan Q, and Sun Y (2018). Concrete curved box girders interacted with vehicles in braking or acceleration. International Journal of Structural Stability and Dynamics, 18(4): 1-18. https://doi.org/10.1142/S0219455418500530   [Google Scholar]
  8. Ju SH and Lin HT (2007). A finite element model of vehicle–bridge interaction considering braking and acceleration. Journal of Sound and Vibration, 303(1-2): 46-57. https://doi.org/10.1016/j.jsv.2006.11.034   [Google Scholar]
  9. Law SS and Zhu XQ (2005). Bridge dynamic responses due to road surface roughness and braking of vehicle. Journal of Sound and Vibration, 282(3-5): 805-830. https://doi.org/10.1016/j.jsv.2004.03.032   [Google Scholar]
  10. Liu K, De Roeck G, and Lombaert G (2009). The effect of dynamic train–bridge interaction on the bridge response during a train passage. Journal of Sound and Vibration, 325(1-2): 240-251. https://doi.org/10.1016/j.jsv.2009.03.021   [Google Scholar]
  11. Ľuboš D, Kortiš J, Olivier B, and Kouroussis G (2016). Modelling of road vehicle-bridge interaction using a compound multibody/finite element approach. In the 23rd International Congress on Sound and Vibration, Athens, Greece: 1-8.   [Google Scholar]
  12. Machado RD and Bernardes V (2007). Dynamic analysis of vehicle-bridge interaction. In the 19th International Congress of Mechanical Engineering. Brasília, Brazil.   [Google Scholar]
  13. Pham TD, Pham QT, Nguyen TB, Hoang HP, and Nguyen PT (2018). Dynamic response of multi-span arch bridge on spring supports subjected to moving vehicle. International Journal of Advanced and Applied Sciences, 5(10): 35-45. https://doi.org/10.21833/ijaas.2018.10.006   [Google Scholar]
  14. Tran MT, Ang KK, and Luong VH (2016). Dynamic response of high-speed rails due to heavy braking. Conference of the Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit, 231(6): 701-716. https://doi.org/10.1177/0954409716639997   [Google Scholar]
  15. Vaidya T and Chatterjee A (2017). Vibration of road bridges under moving vehicles: a comparative study between single contact point and two contact point models. Transactions of the Canadian Society for Mechanical Engineering, 41(1): 99-111. https://doi.org/10.1139/tcsme-2017-1007   [Google Scholar]
  16. Yang YB, Yau JD, Yao Z, and Wu YS (2004). Vehicle-bridge interaction dynamics: With applications to high-speed railways. World Scientific Publishing Company, Singapore, Singapore. https://doi.org/10.1142/5541   [Google Scholar]
  17. Zhong H, Yang M, and Gao ZJ (2015). Dynamic responses of prestressed bridge and vehicle through bridge–vehicle interaction analysis. Engineering Structures, 87: 116-125. https://doi.org/10.1016/j.engstruct.2015.01.019   [Google Scholar]
