International Journal of

ADVANCED AND APPLIED SCIENCES

EISSN: 2313-3724, Print ISSN: 2313-626X

Frequency: 12
line decor

line decor

 Volume 10, Issue 6 (June 2023), Pages: 48-53

----------------------------------------------

 Original Research Paper

An empirical study of extracting embedded text from digital images

 Author(s):

 Emad Shafie *

 Affiliation(s):

 Department of Computer and Applied Science, Applied College, Umm Al-Qura University, Mecca, Saudi Arabia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0003-2041-6380

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2023.06.006

 Abstract:

The utilization of images as a means of transferring information is a widespread technique employed to circumvent simple detection functions that primarily focus on analyzing textual content rather than conducting thorough file examinations. This study investigates the efficacy of deep learning models in detecting embedded information within digital images. The data used for analysis was acquired from a secondary source and underwent comprehensive preprocessing. Feature extraction, sequence labeling, and predictive model training were performed using CRNN, CNN, and RNN models. Two specific models were trained and tested in this research: 1) CNN, RNN-LSTM with the Adam optimizer, and 2) CNN, RNN-GRU with the RAdam optimizer for text detection. The findings reveal that Model #1 achieved the highest F1-score during testing, with a score of 98.37% for text detection and 96.73% for word detection. The second model obtained an F1-score of 94.84% and 93.05% for text and word detection, respectively. Model #1 exhibited a word detection accuracy of 98.38% and a text detection accuracy of 96.47%. These findings indicate that the first model outperformed the second model, suggesting that employing RNN-LSTM and the Adam optimizer made a positive impact. Therefore, utilizing deep learning tools and emerging technologies is crucial for extracting textual information and analyzing visual data. In summary, this study concludes that deep learning models can be relied upon to effectively detect textual information embedded within digital images.

 © 2023 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Convoluted neural networks, Deep learning, Long short-term memory, Digital images, Text detection, Embedded information

 Article History: Received 13 December 2022, Received in revised form 2 April 2023, Accepted 6 April 2023

 Acknowledgment

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Shafie E (2023). An empirical study of extracting embedded text from digital images. International Journal of Advanced and Applied Sciences, 10(6): 48-53

 Permanent Link to this page

 Figures

 No Figure

 Tables

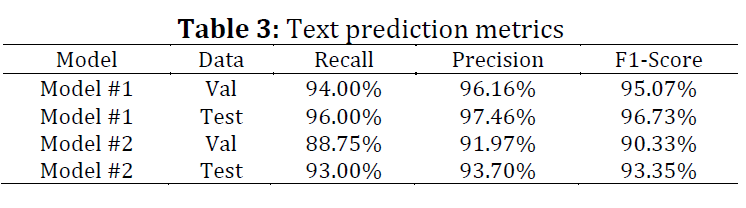

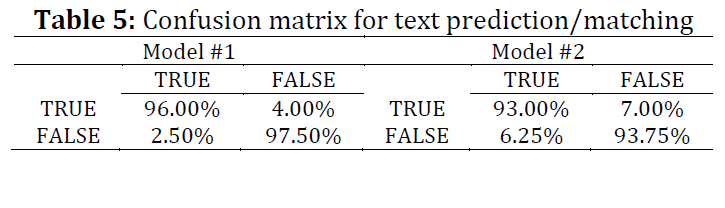

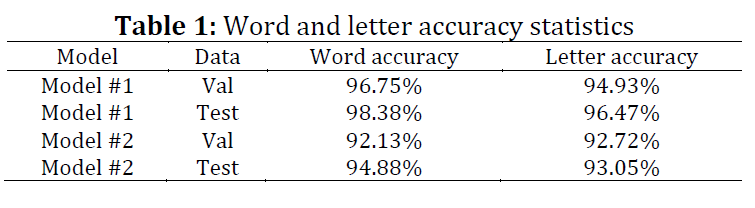

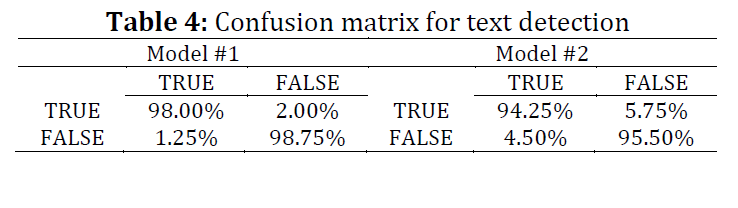

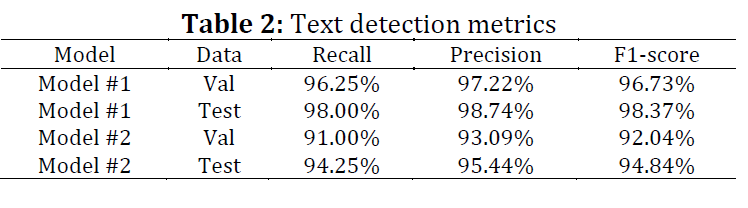

 Table 1 Table 2 Table 3 Table 4 Table 5

----------------------------------------------

 References (21)

  1. Al-Saffar A, Awang S, Al-Saiagh W, Al-Khaleefa AS, and Abed SA (2021). A sequential handwriting recognition model based on a dynamically configurable CRNN. Sensors, 21(21): 7306. https://doi.org/10.3390/s21217306   [Google Scholar] PMid:34770612 PMCid:PMC8587523
  2. Cao Y, Ma S, and Pan H (2020). FDTA: Fully convolutional scene text detection with text attention. IEEE Access, 8(1): 155441-155449. https://doi.org/10.1109/ACCESS.2020.3018784   [Google Scholar]
  3. Chang L, Li D, Hameed MK, Yin Y, Huang D, and Niu Q (2021). Using a hybrid neural network model DCNN–LSTM for image-based nitrogen nutrition diagnosis in muskmelon. Horticulturae, 7(11): 489. https://doi.org/10.3390/horticulturae7110489   [Google Scholar]
  4. Huang C and Xu J (2019). An anchor-free oriented text detector with connectionist text proposal network. In the 11th Asian Conference on Machine Learning, PMLR, Nagoya, Japan, 101: 631-645. https://doi.org/10.1145/3318299.3318373   [Google Scholar]
  5. Huang Z, Lin J, Yang H, Wang H, Bai T, Liu Q, and Pang Y (2020). An algorithm based on text position correction and encoder-decoder network for text recognition in the scene image of visual sensors. Sensors, 20(10): 2942. https://doi.org/10.3390/s20102942   [Google Scholar] PMid:32455941 PMCid:PMC7285298
  6. Jaderberg M, Simonyan K, Vedaldi A, and Zisserman A (2016). Reading text in the wild with convolutional neural networks. International Journal of Computer Vision, 116: 1-20. https://doi.org/10.1007/s11263-015-0823-z   [Google Scholar]
  7. Kang J, Ibrayim M, and Hamdulla A (2022). MR-FPN: Multi-level residual feature pyramid text detection network based on self-attention environment. Sensors, 22(9): 3337. https://doi.org/10.3390/s22093337   [Google Scholar] PMid:35591028 PMCid:PMC9102995
  8. Kang X, Huang H, Hu Y, and Huang Z (2021). Connectionist temporal classification loss for vector quantized variational autoencoder in zero-shot voice conversion. Digital Signal Processing, 116: 103110. https://doi.org/10.1016/j.dsp.2021.103110   [Google Scholar]
  9. Levy I and Schiller D (2021). Neural computations of threat. Trends in Cognitive Sciences, 25(2): 151-171. https://doi.org/10.1016/j.tics.2020.11.007   [Google Scholar] PMid:33384214 PMCid:PMC8084636
  10. Li X, Liu J, Zhang G, Huang Y, Zheng Y, and Zhang S (2021). Learning to predict more accurate text instances for scene text detection. Neurocomputing, 449: 455-463. https://doi.org/10.1016/j.neucom.2021.04.035   [Google Scholar]
  11. Li Y, Silamu W, Wang Z, and Xu M (2022). Attention-based scene text detection on dual feature fusion. Sensors, 22(23): 9072. https://doi.org/10.3390/s22239072   [Google Scholar] PMid:36501774 PMCid:PMC9739706
  12. Li Z, Zhou Y, Sheng Q, Chen K, and Huang J (2020). A high-robust automatic reading algorithm of pointer meters based on text detection. Sensors, 20(20): 5946. https://doi.org/10.3390/s20205946   [Google Scholar] PMid:33096701 PMCid:PMC7589492
  13. Nagaoka Y, Miyazaki T, Sugaya Y, and Omachi S (2017). Text detection by faster R-CNN with multiple region proposal networks. In the 14th IAPR International Conference on Document Analysis and Recognition, IEEE, Kyoto, Japan, 6: 15-20. https://doi.org/10.1109/ICDAR.2017.343   [Google Scholar]
  14. Nozari H and Sadeghi ME (2021). Artificial intelligence and machine learning for real-world problems (A survey). International Journal of Innovation in Engineering, 1(3): 38-47. https://doi.org/10.59615/ijie.1.3.38   [Google Scholar]
  15. Raisi Z, Naiel MA, Fieguth P, Wardell S, and Zelek J (2020). Text detection and recognition in the wild: A review. ArXiv Preprint ArXiv:2006.04305. https://doi.org/10.48550/arXiv.2006.04305   [Google Scholar]
  16. Shah D, Osinski B, Ichter B, and Levine S (2023). LM-Nav: Robotic navigation with large pre-trained models of language, vision, and action. ArXiv Preprint ArXiv:2207.04429. https://doi.org/10.48550/arXiv.2207.04429   [Google Scholar]
  17. Verdonck T, Baesens B, Óskarsdóttir M, and vanden Broucke S (2021). Special issue on feature engineering editorial. Machine Learning, 1-12. https://doi.org/10.1007/s10994-021-06042-2   [Google Scholar]
  18. Wang X, Zheng S, Zhang C, Li R, and Gui L (2021). R-YOLO: A real-time text detector for natural scenes with arbitrary rotation. Sensors, 21(3): 888. https://doi.org/10.3390/s21030888   [Google Scholar] PMid:33525619 PMCid:PMC7865800
  19. Wang Y, Mamat H, Xu X, Aysa A, and Ubul K (2022). Scene Uyghur text detection based on fine-grained feature representation. Sensors, 22(12): 4372. https://doi.org/10.3390/s22124372   [Google Scholar] PMid:35746154 PMCid:PMC9229707
  20. Xiao L, Zhou P, Xu K, and Zhao X (2021). Multi-directional scene text detection based on improved YOLOv3. Sensors, 21(14): 4870. https://doi.org/10.3390/s21144870   [Google Scholar] PMid:34300607 PMCid:PMC8309843
  21. Zhao F, Shao S, Zhang L, and Wen Z (2021). A straightforward and efficient instance-aware curved text detector. Sensors, 21(6): 1945. https://doi.org/10.3390/s21061945   [Google Scholar] PMid:33802093 PMCid:PMC8000375
