 Volume 10, Issue 10 (October 2023), Pages: 139-145

----------------------------------------------

 Original Research Paper

Intelligent static synchronous compensator with super-capacitor for enhancement of power network security

 Author(s):

 Prajakta Vaidya *, Vinod Chandrakar

 Affiliation(s):

 Department of Electrical Engineering, G. H. Raisoni College of Engineering, Nagpur, India

 Full text

  Full Text - PDF

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0002-2775-7439

 Digital Object Identifier (DOI)

 https://doi.org/10.21833/ijaas.2023.10.016

 Abstract

Power network security becomes an important issue for power system economics. A proportional integral-based static synchronous compensator in flexible AC transmission systems is generally used to enhance power network security. But, it takes more time to make the network stable and secure. A PI-controlled STATCOM with a super-capacitor as an electrical storage device and transient performance improver helps the network become stable and secure. As the PI controller depends on mathematical modeling, it may respond slowly, affecting the stability and security of the network. A fuzzy logic controller, as an intelligent controller with logical rules, can overcome the slow response problem of PI controllers. Hence, to enhance power network security, an intelligent static synchronous compensator in coordination with a super-capacitor is suggested here. A multimachine network is modeled in a MATLAB environment with severe faults near the generator, making it unstable and unsecure. The validation of the proposed combination is observed by comparing the performance of the network without STACOM, with conventional PI STATCOM, with intelligent STATCOM, and with intelligent STATCOM coordinated with a super-capacitor.

 © 2023 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords

 STATCOM, Super-capacitor, PI, FLC, FI

 Article history

 Received 17 March 2023, Received in revised form 14 July 2023, Accepted 28 September 2023

 Acknowledgment

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Vaidya P and Chandrakar V (2023). Intelligent static synchronous compensator with super-capacitor for enhancement of power network security. International Journal of Advanced and Applied Sciences, 10(10): 139-145

 Permanent Link to this page

 Figures

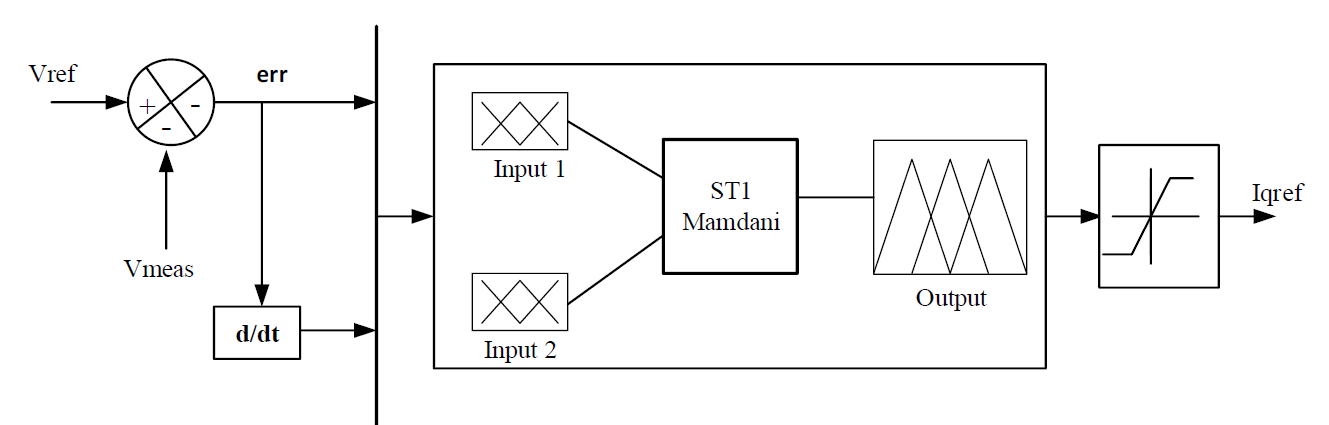

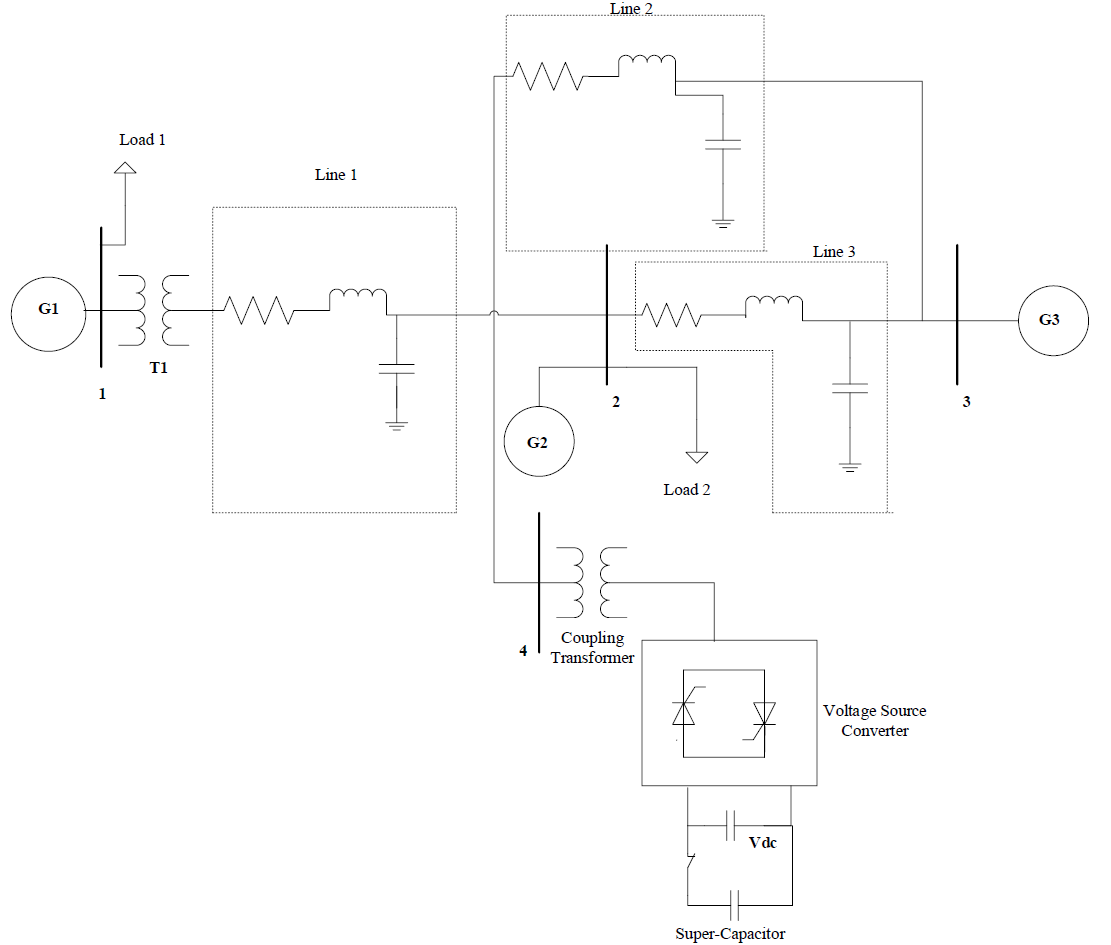

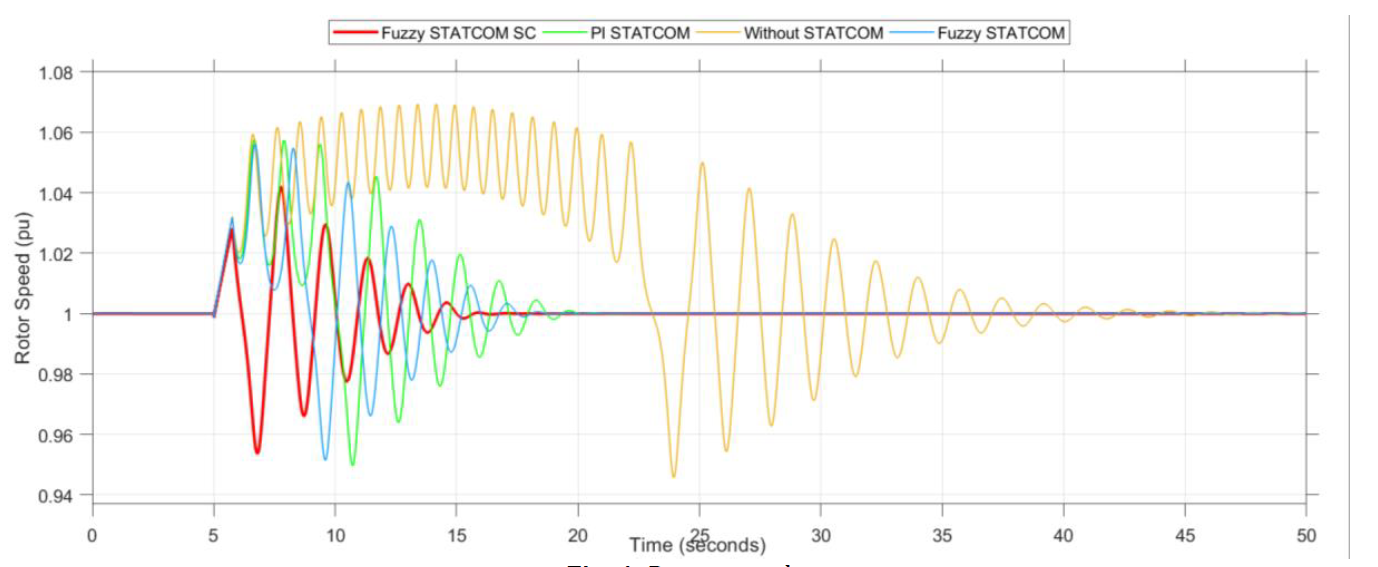

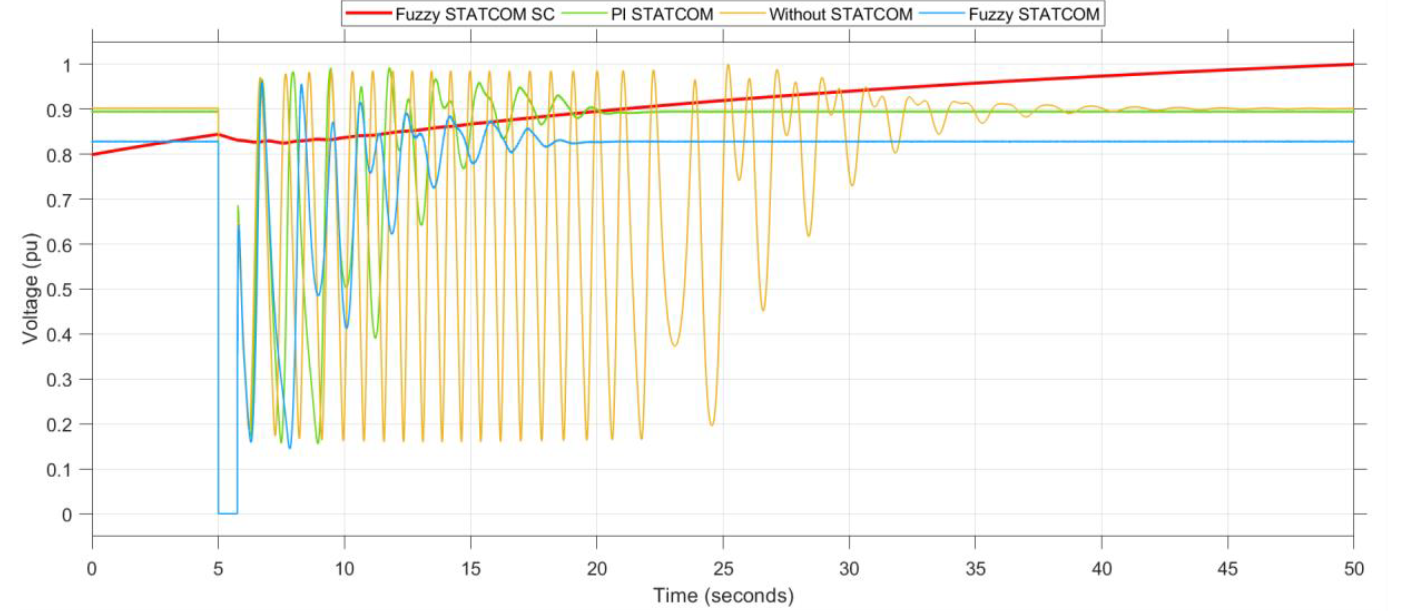

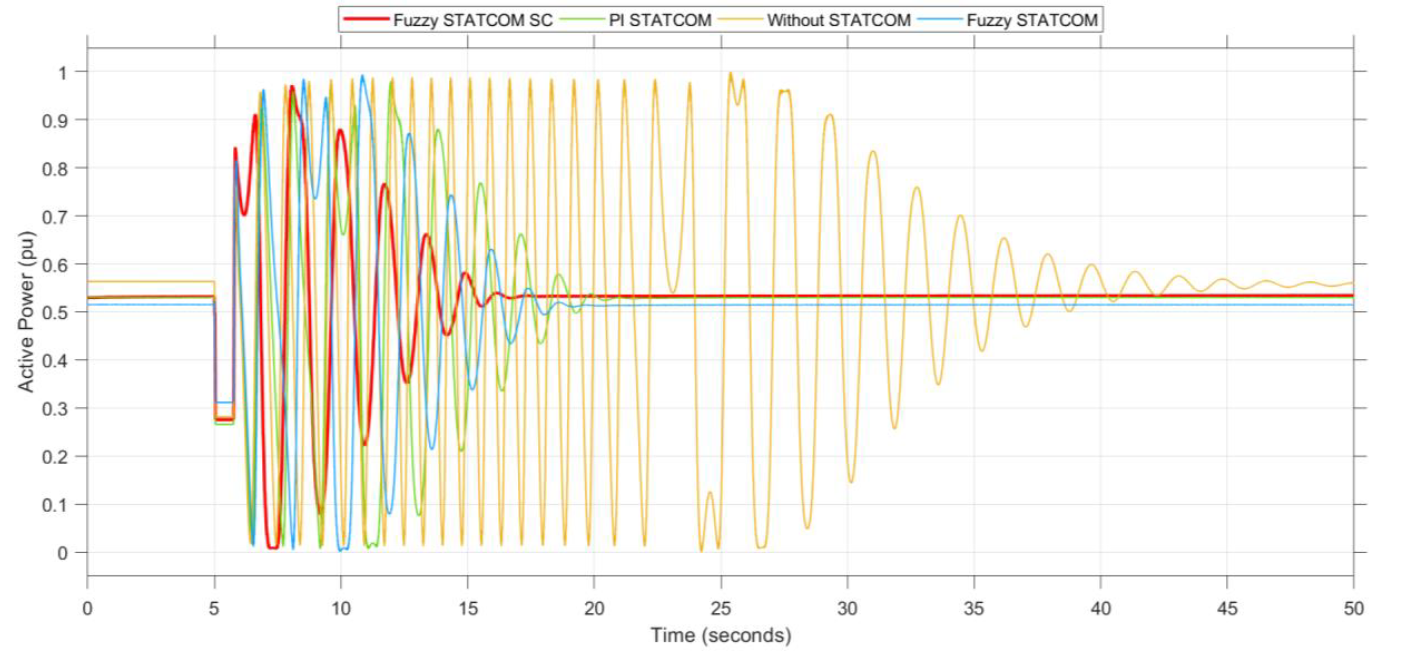

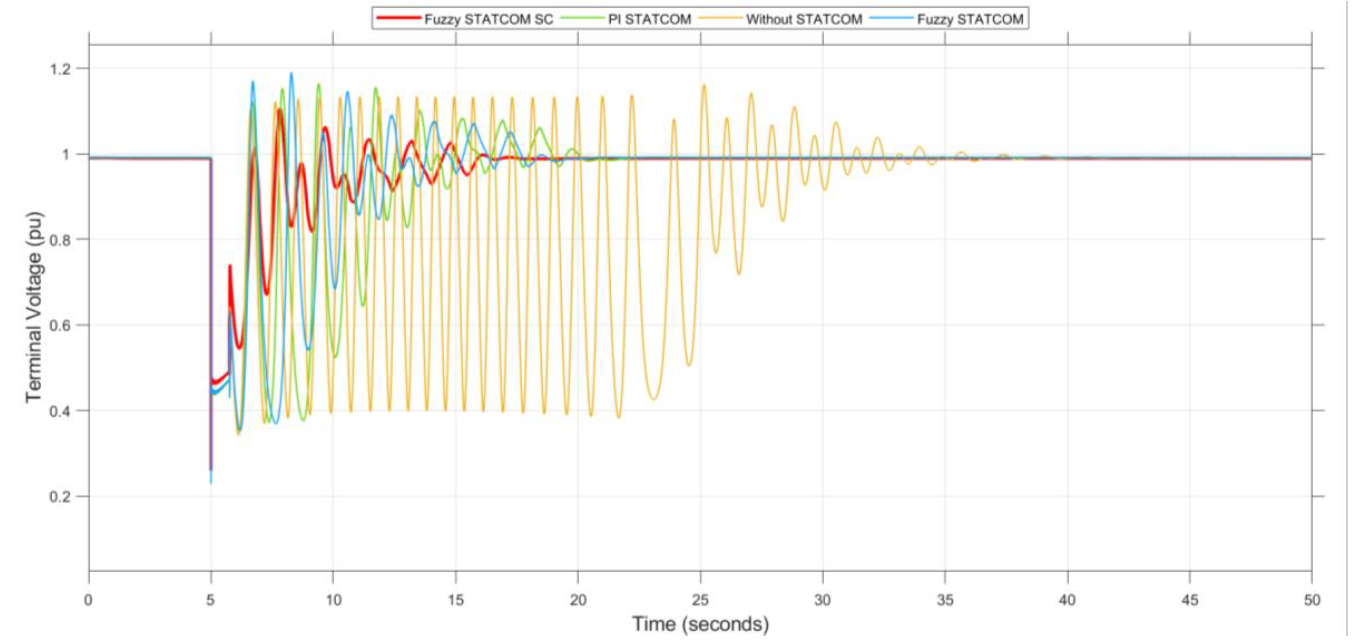

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8

 Tables

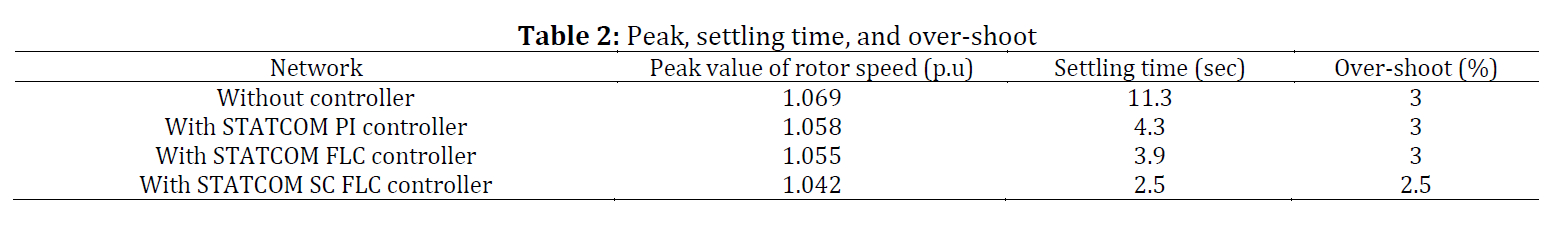

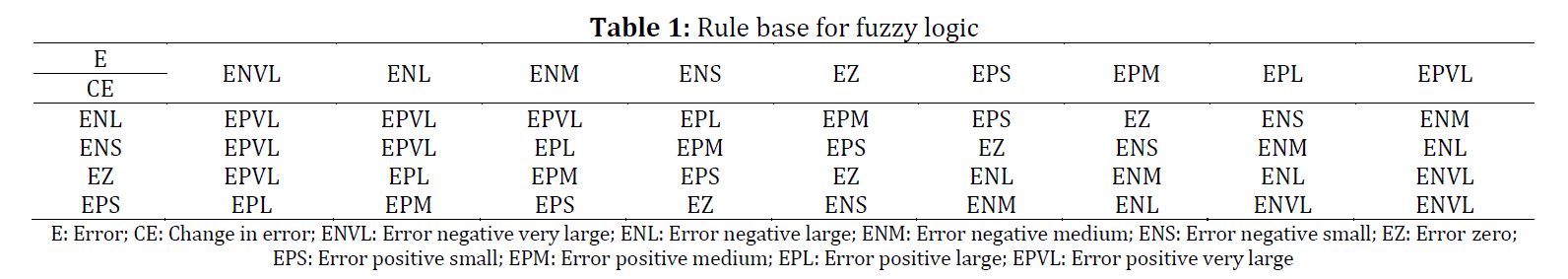

 Table 1 Table 2

----------------------------------------------

 References (22)

  1. Adware R and Chandrakar V (2022). Power quality enhancement through reactive power compensation using hybrid STATCOM. In the 2nd International Conference on Power, Control and Computing Technologies, IEEE, Raipur, India: 1-5. https://doi.org/10.1109/ICPC2T53885.2022.9777006   [Google Scholar]
  2. Akhtar MMN and Chandrakar VK (2019). Security enhancement of hybrid source in the grid with STATCOM. In the 3rd International Conference on Electronics, Communication and Aerospace Technology, IEEE, Coimbatore, India: 49-54. https://doi.org/10.1109/ICECA.2019.8821798   [Google Scholar]
  3. Ansari J, Abbasi AR, Heydari MH, and Avazzadeh Z (2022). Simultaneous design of fuzzy PSS and fuzzy STATCOM controllers for power system stability enhancement. Alexandria Engineering Journal, 61(4): 2841-2850. https://doi.org/10.1016/j.aej.2021.08.007   [Google Scholar]
  4. Awasthi A, Gupta SK, and Panda MK (2015). Design of a fuzzy logic controller based STATCOM for IEEE9 bus system. European Journal of Advances in Engineering and Technology, 2(4): 62-67.   [Google Scholar]
  5. Belwanshi S, Chandrakar V, and Dhurvey S (2011). Performance evaluation of IPFC by using fuzzy logic based controller for damping of power system oscilllations. In the 4th International Conference on Emerging Trends in Engineering and Technology, IEEE, Port Louis, Mauritius: 168-173. https://doi.org/10.1109/ICETET.2011.43   [Google Scholar]
  6. Chandrakar VK and Kothari AG (2007a). Fuzzy-based static synchronous compensator (STATCOM) for improving transient stability performance. International Journal of Energy Technology and Policy, 5(6): 692-707. https://doi.org/10.1504/IJETP.2007.015623   [Google Scholar]
  7. Chandrakar VK and Kothari AG (2007b). Comparison of RBFN and fuzzy based STATCOM controllers for transient stability improvement. In the International Aegean Conference on Electrical Machines and Power Electronics, IEEE, Bodrum, Turkey: 520-525. https://doi.org/10.1109/ACEMP.2007.4510556   [Google Scholar]
  8. Hingorani NG and Gyugyi L (2001). Understanding FACTS, concept and technology of flexible AC transmission systems. IEEE Press, New Delhi, India.   [Google Scholar]
  9. Kakde AA, Tarnekar SG, and Daigavane PM (2018). MatLab simulation of reconfigured ultracapacitors for co-working with battery for faster energy exchange. In the International Conference on Smart Electric Drives and Power System, IEEE, Nagpur, India: 1-6. https://doi.org/10.1109/ICSEDPS.2018.8536005   [Google Scholar]
  10. Kothari DP and Nagrath IJ (2011). Modern power system analysis. 4th Edition, Tata McGraw-Hill, New Delhi, India.   [Google Scholar]
  11. Mak LO, Ni YX, Zhang Q, and Han ZX (1999). STATCOM with fuzzy controllers for stability enhancement of interconnected power systems. IFAC Proceedings Volumes, 32(2): 7376-7381. https://doi.org/10.1016/S1474-6670(17)57258-4   [Google Scholar]
  12. Mohanty KB and Pati S (2016). Fuzzy logic controller based STATCOM for voltage profile improvement in a micro-grid. In the Annual IEEE Systems Conference, IEEE, Orlando, USA: 1-6. https://doi.org/10.1109/SYSCON.2016.7490645   [Google Scholar]
  13. Nafeh AA, Heikal A, El-Sehiemy RA, and Salem WA (2022). Intelligent fuzzy-based controllers for voltage stability enhancement of AC-DC micro-grid with D-STATCOM. Alexandria Engineering Journal, 61(3): 2260-2293. https://doi.org/10.1016/j.aej.2021.07.012   [Google Scholar]
  14. Nguyen VH, Nguyen H, Cao MT, and Le KH (2019). Performance comparison between PSO and GA in improving dynamic voltage stability in ANFIS controllers for STATCOM. Engineering, Technology and Applied Science Research, 9(6): 4863-4869. https://doi.org/10.48084/etasr.3032   [Google Scholar]
  15. Rajderkar VP and Chandrakar VK (2022). Enhancement of power system security by fuzzy based unified power flow controller. In the 2nd International Conference on Intelligent Technologies, IEEE, Hubli, India: 1-4. https://doi.org/10.1109/CONIT55038.2022.9847699   [Google Scholar]
  16. Rajderkar VP and Chandrakar VK (2023). Design coordination of a fuzzy-based unified power flow controller with hybrid energy storage for enriching power system dynamics. Engineering, Technology and Applied Science Research, 13(1): 10027-10032. https://doi.org/10.48084/etasr.5508   [Google Scholar]
  17. Renuka T and Kesavarao G (2017). STATCOM with battery and super capacitor hybrid energy storage system for enhancement of voltage stability. Indonesian Journal of Electrical Engineering and Computer Science, 5(2): 250-259. https://doi.org/10.11591/ijeecs.v5.i2.pp250-259   [Google Scholar]
  18. Shahgholian G, Mardani E, and Fattollahi A (2017). Impact of PSS and STATCOM devices to the dynamic performance of a multi-machine power system. Engineering, Technology and Applied Science Research, 7(6): 2113-2117. https://doi.org/10.48084/etasr.1381   [Google Scholar]
  19. Singh B, Saha R, Chandra A, and Al-Haddad K (2009). Static synchronous compensators (STATCOM): A review. IET Power Electronics, 2(4): 297-324. https://doi.org/10.1049/iet-pel.2008.0034   [Google Scholar]
  20. Vaidya P and Chandrakar VK (2022). Exploring the enhanced performance of a static synchronous compensator with a super-capacitor in power networks. Engineering, Technology and Applied Science Research, 12(6): 9703-9708. https://doi.org/10.48084/etasr.5317   [Google Scholar]
  21. Vaidya PS and Rajderkar VP (2011). Optimal location of series FACTS devices for enhancing power system security. In the 4th International Conference on Emerging Trends in Engineering and Technology, IEEE, Port Louis, Mauritius: 185-190. https://doi.org/10.1109/ICETET.2011.58   [Google Scholar]
  22. Zeng X (2019). Application of fuzzy-PI-based voltage control in STATCOM. In the IOP Conference Series: Earth and Environmental Science, IOP Publishing, 300: 042057. https://doi.org/10.1088/1755-1315/300/4/042057   [Google Scholar]
