 Volume 8, Issue 8 (August 2021), Pages: 63-70

----------------------------------------------

 Original Research Paper

 Title: Multi-effect evaporator desalination powered by geo-solar thermal energy

 Author(s): Ibrahim Alenezi *

 Affiliation(s):

 Department of Chemical Engineering and Material Science, Faculty of Engineering, Northern Border University, Arar, Saudi Arabia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0001-5169-3028

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2021.08.009

 Abstract:

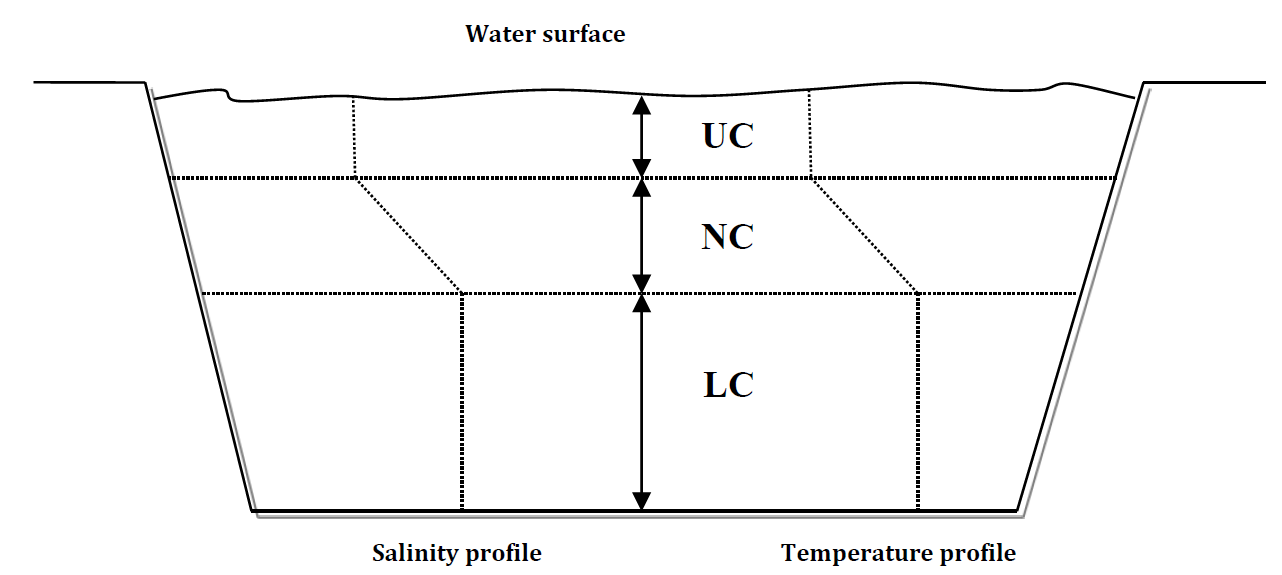

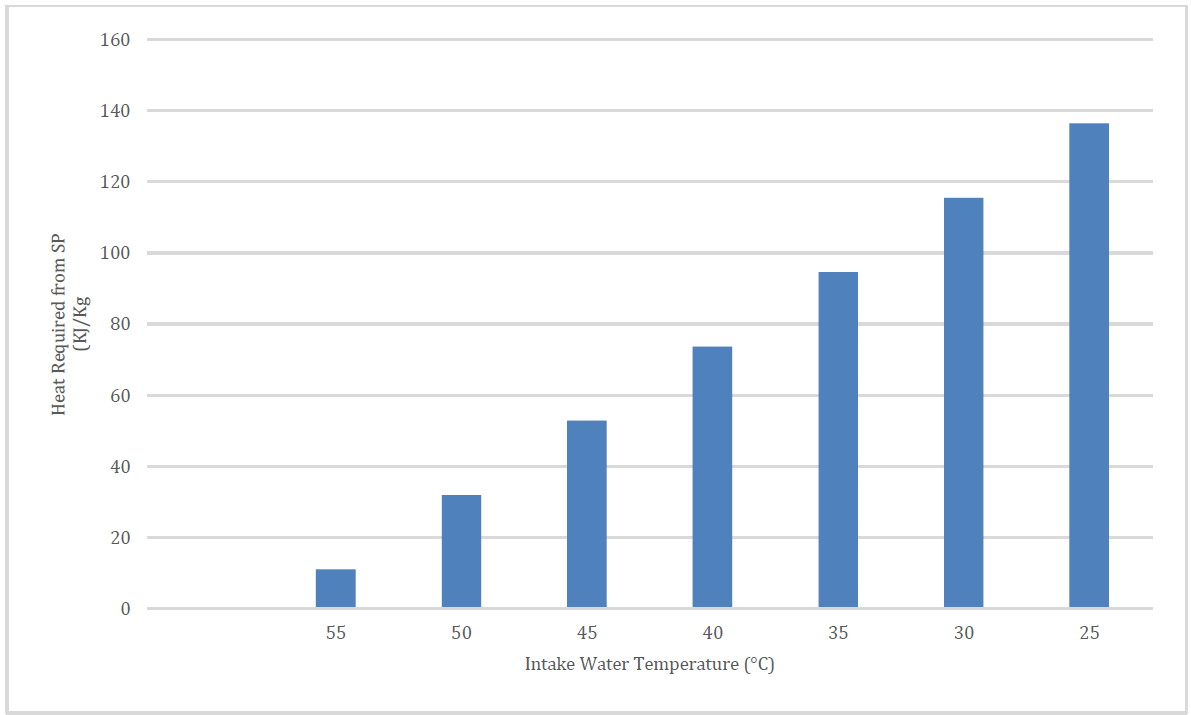

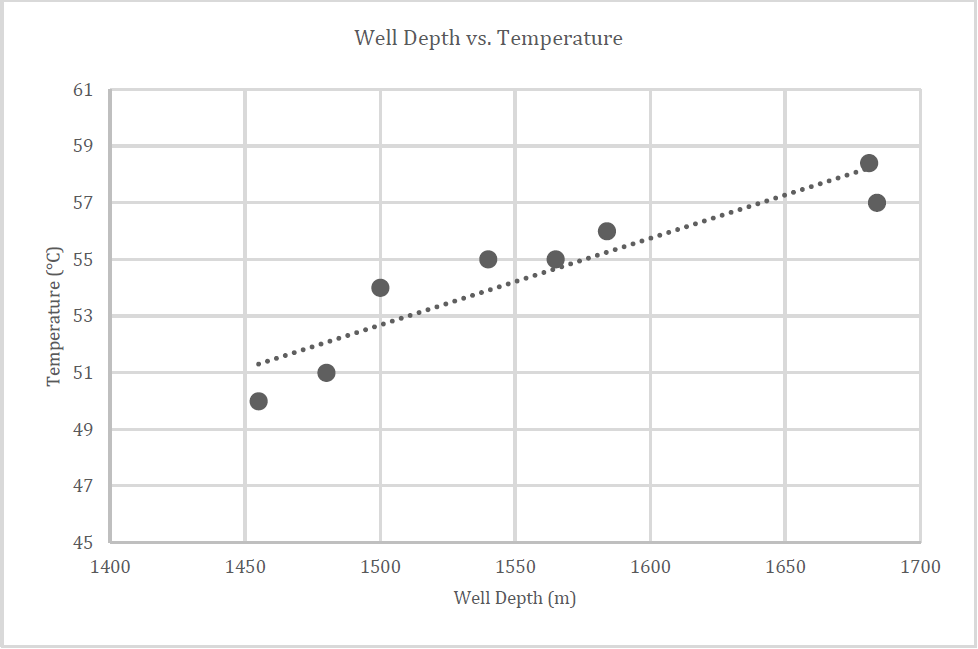

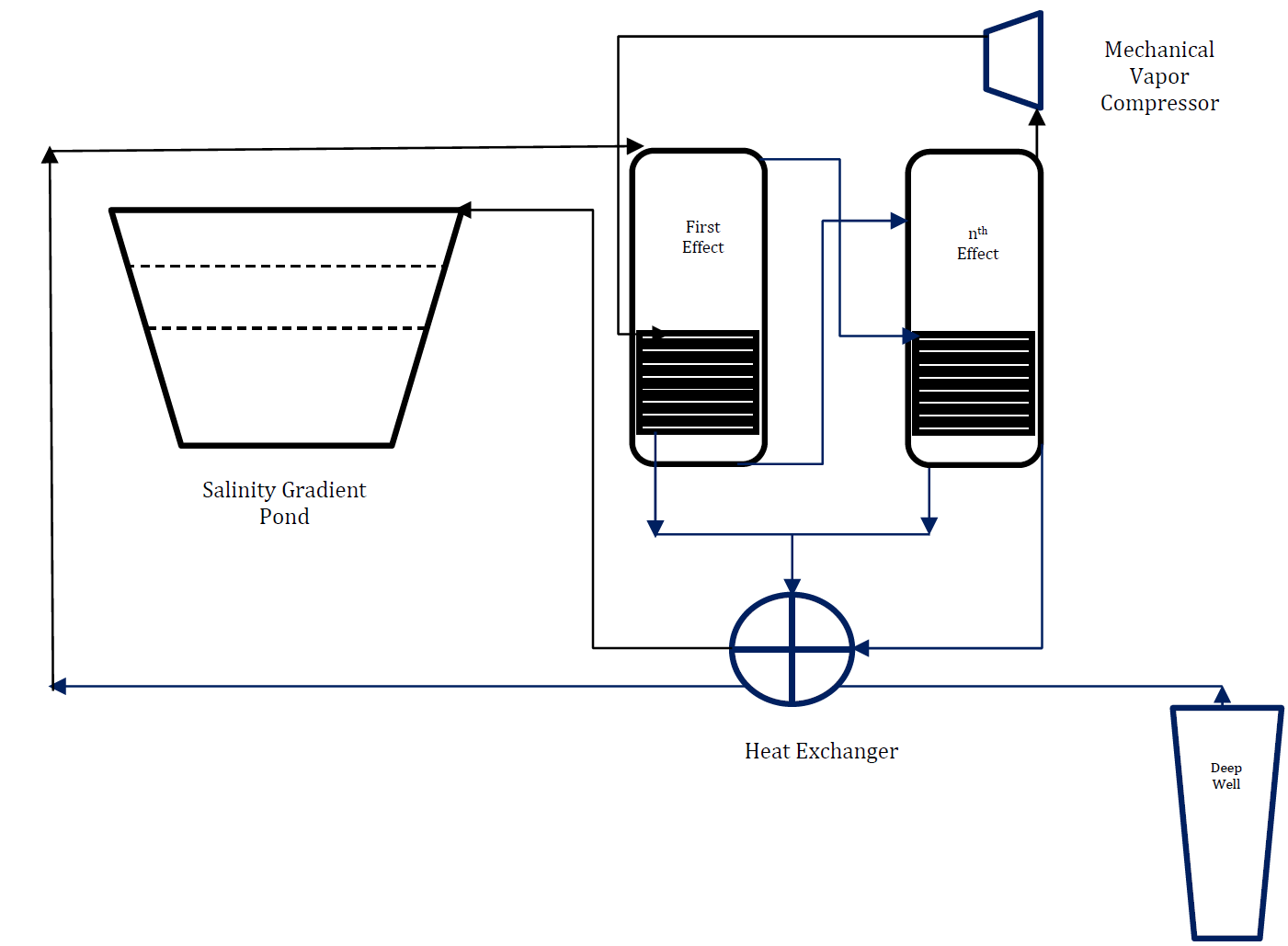

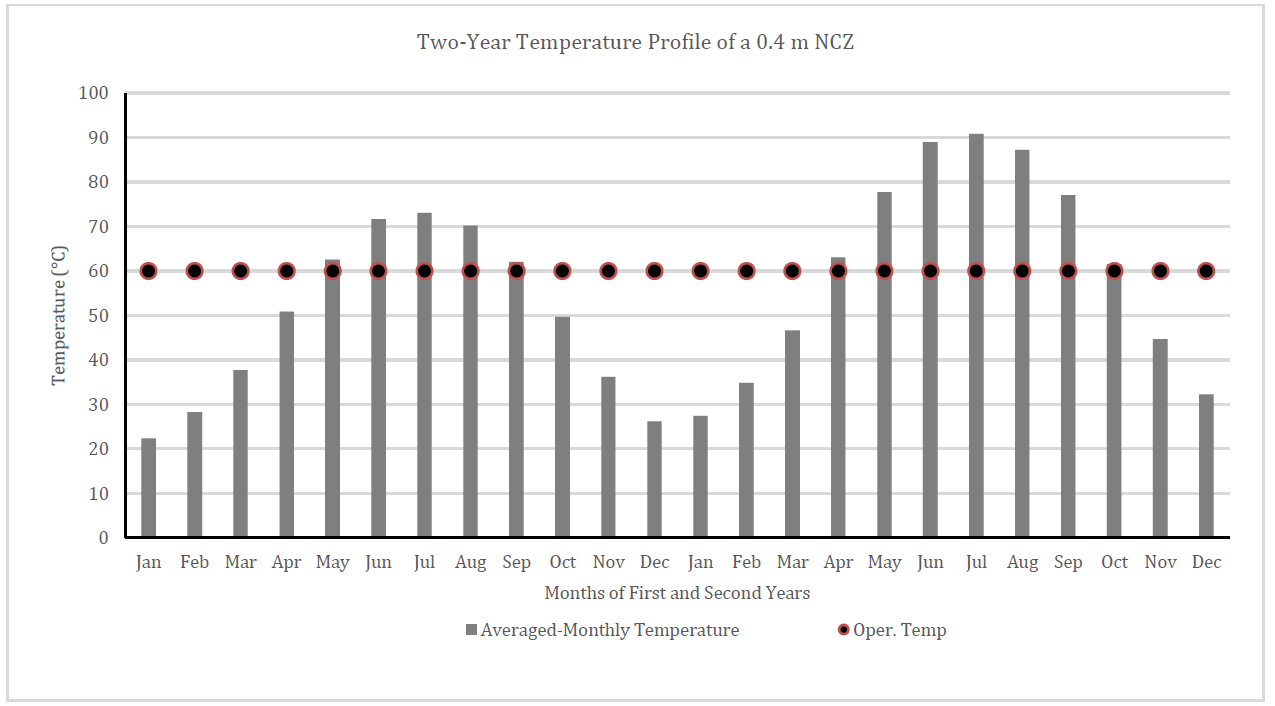

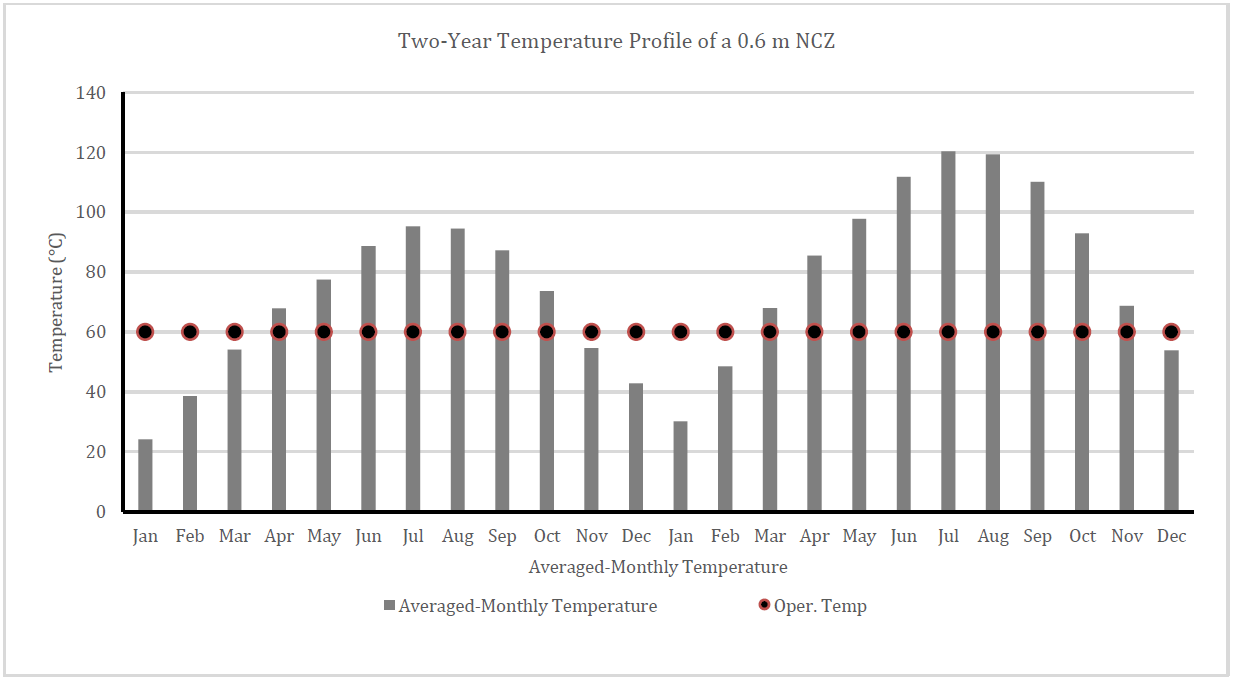

The abundance of solar energy in Saudi Arabia makes it the most promising option for use in water desalination. A salinity gradient solar pond (SGSP) is one of the most encouraging direct solar heat collectors. Increasing the gradient zone depth of the SGSP to 0.6m allows it to sustain the low operating temperature of single-or multi-effect evaporators (MEE) for 9 months of the year. The unique innovation of utilizing the heat of deep well water to support the operation of a system with such a low operating temperature provides feed water at up to 55°C, which means only 11.2kJ of heat energy is required to heat each 1kg of water to the MEE’s evaporation temperature. This is 9.7% of the energy required when using surface seawater. A MATLAB simulation tool was developed to model the coupling of an SGSP with an MEE and was validated with experimental data collected for the climatic conditions of Saudi Arabia. It is well known that a conventional thermal desalination plant is cost-intensive, but the coupling model study of SGSP–MEE shows its operational feasibility at much lower costs.

 © 2021 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Geo-solar desalination, Multi-effect, Solar pond, Renewable energy

 Article History: Received 7 February 2021, Received in revised form 30 April 2021, Accepted 19 May 2021

 Acknowledgment

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

 Alenezi I (2021). Multi-effect evaporator desalination powered by geo-solar thermal energy. International Journal of Advanced and Applied Sciences, 8(8): 63-70

 Permanent Link to this page

 Figures

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7

 Tables

 No Table

----------------------------------------------

 References (20)

  1. Al-Shammiri M and Safar M (1999). Multi-effect distillation plants: State of the art. Desalination, 126(1-3): 45-59.   [Google Scholar]
  2. Dickinson W and Cheremisinoff P (1980). Solar energy technology handbook: Part a-engineering fundamentals. Dekker Marcel, New York, USA.   [Google Scholar]
  3. Duffie J and Beckman W (2006). Solar engineering of thermal processes. 3rd Edition, John Wiley and Sons, Hoboken, USA. https://doi.org/10.1016/S0011-9164(99)00154-X   [Google Scholar]
  4. El-Dessouky HT and Ettouney HM (2002). Fundamentals of salt water desalination. Elsevier, New York, USA.   [Google Scholar]
  5. Garmana MA and Muntasserb MA (2008). Sizing and thermal study of salinity gradient solar ponds connecting with the MED desalination unit. Desalination, 222(1-3): 689-695. https://doi.org/10.1016/j.desal.2007.02.074   [Google Scholar]
  6. Geankoplis C (1993). Transport processes and unit operations. 3rd Edition, Prentice-Hall, Hoboken, USA.   [Google Scholar]
  7. Guo Y, Bao M, Gong L, and Shen S (2020). Effects of preheater arrangement on performance of MED desalination system. Desalination, 496: 114702. https://doi.org/10.1016/j.desal.2020.114702   [Google Scholar]
  8. Hongsheng L, Dan W, and MaoZhao X (2020). Experimental study on the thermal performance of a porous medium solar pond. In the 4th International Conference on Green Energy and Applications, IEEE, Singapore, Singapore: 106-110. https://doi.org/10.1109/ICGEA49367.2020.239714   [Google Scholar]
  9. Hull J, Nielsen C, and Golding P (1989). Salinity-gradient solar ponds. CRC Press, Boca Raton, USA. https://doi.org/10.1007/978-1-4613-9945-2_6   [Google Scholar]
  10. Kalogirou SA (2001). Effect of fuel cost on the price of desalination water: A case for renewables. Desalination, 138(1-3): 137-144. https://doi.org/10.1016/S0011-9164(01)00255-7   [Google Scholar]
  11. Kreider J and Kreith F (1981). Solar energy handbook. McGraw-Hill, New York, USA. https://doi.org/10.1115/1.3266267   [Google Scholar]
  12. Lu H, Walton JC, and Swift AH (2001). Desalination coupled with salinity-gradient solar ponds. Desalination, 136(1-3): 13-23. https://doi.org/10.1016/S0011-9164(01)00160-6   [Google Scholar]
  13. Mesa AA, Gómez CM, and Azpitarte RU (1997). Energy saving and desalination of water. Desalination, 108(1-3): 43-50. https://doi.org/10.1016/S0011-9164(97)00007-6   [Google Scholar]
  14. Micale G, Rizzuti L, and Cipollina A (2009). Seawater desalination: conventional and renewable energy processes. Volume 1, Springer, Berlin, Germany. https://doi.org/10.1007/978-3-642-01150-4   [Google Scholar]
  15. NASA (2021). Prediction of worldwide energy resources: The power project. Available online at: https://power.larc.nasa.gov
  16. Ophir A and Lokiec F (2005). Advanced MED process for most economical sea water desalination. Desalination, 182(1-3): 187-198. https://doi.org/10.1016/j.desal.2005.02.026   [Google Scholar]
  17. Porteous A (1983). Desalination technology: Developments and practice. 2nd Edition, Applied Science Publishers, London, UK.   [Google Scholar]
  18. Shahzad MW, Burhan M, Ghaffour N, and Ng KC (2018). A multi evaporator desalination system operated with thermocline energy for future sustainability. Desalination, 435: 268-277. https://doi.org/10.1016/j.desal.2017.04.013   [Google Scholar]
  19. Sharif AO, Al-Hussaini H, and Alenezi IA (2011). New method for predicting the performance of solar pond in any sunny part of the world. In the World Renewable Energy Congress-Sweden, Linköping University Electronic Press, Linköping, Sweden: 3702-3709. https://doi.org/10.3384/ecp110573702   [Google Scholar]
  20. Zell E, Gasim S, Wilcox S, Katamoura S, Stoffel T, Shibli H, and Al Subie M (2015). Assessment of solar radiation resources in Saudi Arabia. Solar Energy, 119: 422-438. https://doi.org/10.1016/j.solener.2015.06.031   [Google Scholar]
