 Volume 8, Issue 5 (May 2021), Pages: 59-66

----------------------------------------------

 Original Research Paper

 Title: Speed control of the asynchronous motor using LabVIEW

 Author(s): Petru Livinti *

 Affiliation(s):

 Department of Energy and Computer Science, Vasile Alecsandri University of Bacău, Bacău, Romania

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0002-6217-5733

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2021.05.007

 Abstract:

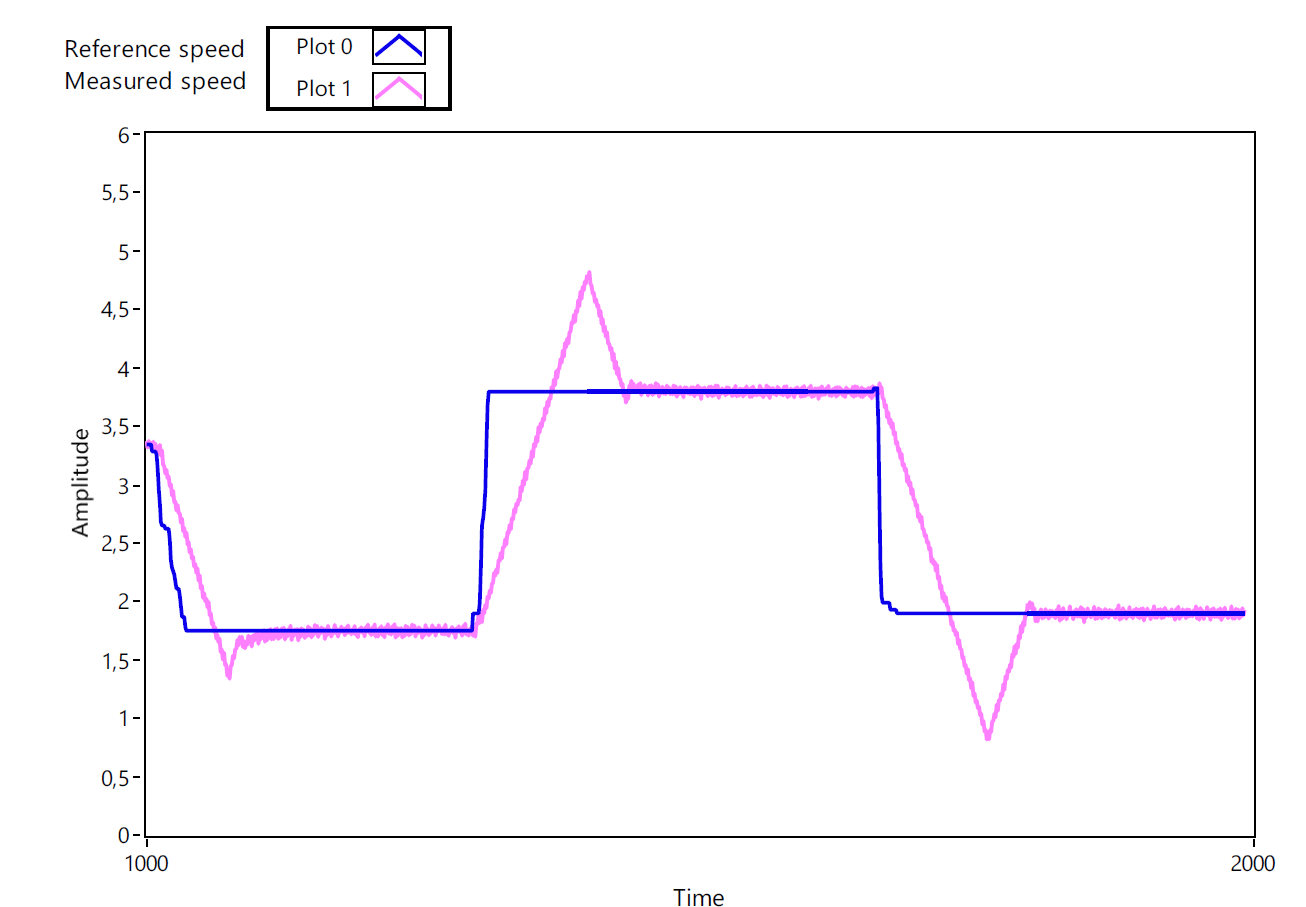

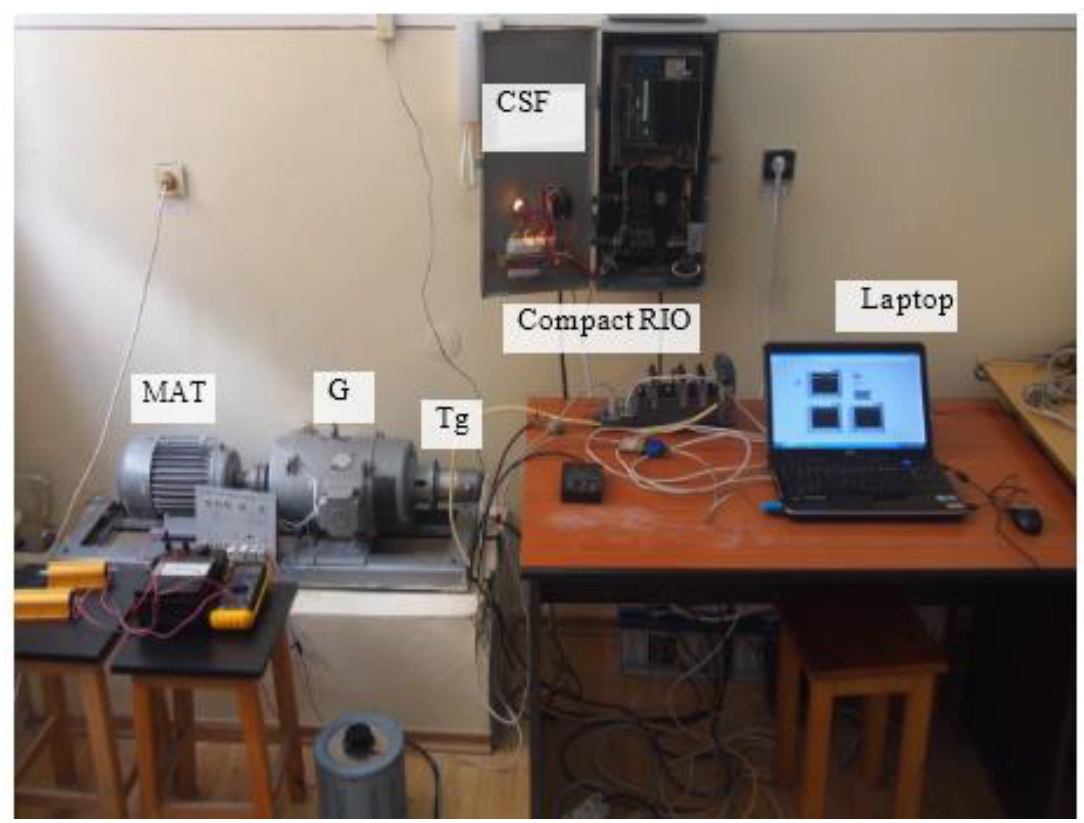

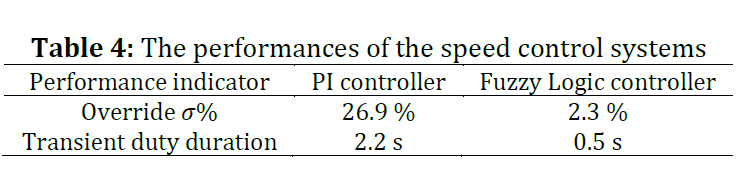

In this paper a comparative study on the methods of adjusting the speed of a three-phase asynchronous motor with a rotor in a short circuit was presented. For the same structure of the experimental stand used, two programs were created, implemented, and validated in LabVIEW. For the first method, the program in LabVIEW was made with the PI (proportional-integrative) controller and for the second method, the program in LabVIEW was made with the Fuzzy Logic controller. Following the analysis of the resulting graphs, it was found that the speed control system made with the fuzzy logic controller ensures an increase in its performance compared to the speed control system made with the conventional PI type controller. The indicial responses of the adjustment system of the three-phase asynchronous motor speed with PI controller or Fuzzy Logic controller have been determined in real-time by means of the experimental stand. The override of the speed adjustment system is decreased from the value of 26.9% corresponding to the PI controller to the value of 2.3% corresponding to the Fuzzy Logic controller and the duration of the transient time is decreased from the value of 2.2 s related to the PI controller to the value of 0.5 s, related to the Fuzzy Logic controller. By using the Fuzzy Logic controller, the amount of electrical energy required to supply the electric drive system made with a three-phase asynchronous motor will be reduced. This three-phase asynchronous motor speed adjustment algorithm can be implemented for other electric drive systems from different industrial applications.

 © 2021 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Three-phase asynchronous motor, Fuzzy logic, Speed control

 Article History: Received 1 October 2020, Received in revised form 20 December 2020, Accepted 19 January 2021

 Acknowledgment

My work has been supported by the “Vasile Alecsandri” University of Bacau from Romania.

 Compliance with ethical standards

 Conflict of interest: The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

 Citation:

  Livinti P (2021). Speed control of the asynchronous motor using LabVIEW. International Journal of Advanced and Applied Sciences, 8(5): 59-66

 Permanent Link to this page

 Figures

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10

 Tables

 Table 1 Table 2 Table 3 Table 4

----------------------------------------------

 References (14)
