 Volume 7, Issue 12 (December 2020), Pages: 133-138

----------------------------------------------

 Original Research Paper

 Title: A comparative study of titanium dioxide preparation methods in solar cells based on the TiO2 semiconducting polymer heterojunction

 Author(s): H. Al-Dmour *

 Affiliation(s):

 Department of Physics, Faculty of Science, Mu'tah University, Mu'tah, Jordan

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0001-5680-5703

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2020.12.015

 Abstract:

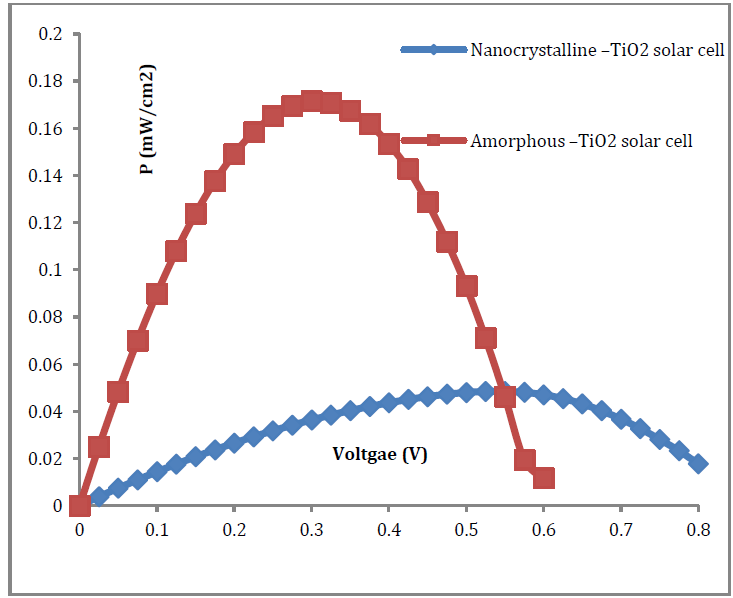

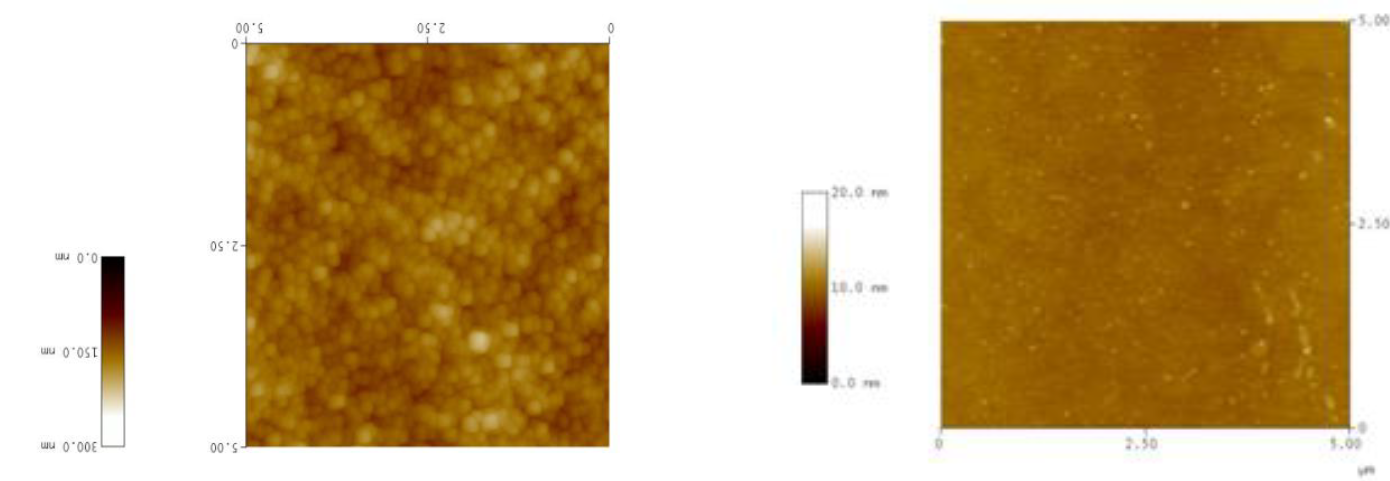

The influence of the morphology and thickness of titanium dioxide (TiO2) films in solar cells based on dioxide materials-semiconducting polymer was investigated. These parameters can significantly impact the mechanism of charge generation in double-layer solar cells. TiO2 films were deposited on glass surfaces using two different techniques. Atomic force microscopy examination revealed a crystalline structure in the thick TiO2 film produced using the doctor blade technique, whereas an amorphous structure and thin layer were obtained via the spin-coating technique. Under light conditions, the best performance between the two solar cells was obtained with the amorphous TiO2thin film, which displayed a higher short circuit current density and power conversion efficiency (Jsc=1mA/cm2, μ=0.24%) than the nanocrystallineTiO2 solar cell (Jsc=0. 23mA/cm2, μ=0.1%). This is explained by the improved efficiencies of hole-electron pair separation and charge collection through reductions in the resistance across the bulk region and in charge recombination at the interfacial layer in the amorphous solar cell. However, the high rectification ratio and high turn-on voltage under dark conditions, and forward bias current in the nanocrystalline solar cell led to an increase of 0.3 V in the open circuit voltage in comparison with the amorphous device. These results confirm that, for double-layer solar cells, an amorphous thin film performs better than a thick nanocrystalline TiO₂ layer, in contrast to previous observations for dye-sensitized solar cells.

 © 2020 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Solar cell, Morphology, Power conversion efficiency, Charge separation, Rectification ratio

 Article History: Received 29 April 2020, Received in revised form 30 July 2020, Accepted 12 August 2020

 Acknowledgment:

No Acknowledgment.

 Compliance with ethical standards

 Conflict of interest: The authors declare that they have no conflict of interest.

 Citation:

  Al-Dmour H (2020). A comparative study of titanium dioxide preparation methods in solar cells based on the TiO2 semiconducting polymer heterojunction. International Journal of Advanced and Applied Sciences, 7(12): 132-138

 Permanent Link to this page

 Figures

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6

 Tables

 No Table

----------------------------------------------

 References (13)

  1. Al-Attafi K, Nattestad A, Wu Q, Ide Y, Yamauchi Y, Dou SX, and Kim JH (2018). The effect of amorphous TiO2 in P25 on dye-sensitized solar cell performance. Chemical Communications, 54(4): 381-384. https://doi.org/10.1039/C7CC07559F   [Google Scholar] PMid:29242873
  2. Al-Dmour H and Taylor DM (2009). Revisiting the origin of open circuit voltage in nanocrystalline-TiO2/polymer heterojunction solar cells. Applied Physics Letters, 94(22): 148. https://doi.org/10.1063/1.3153122   [Google Scholar]
  3. Bartolomeo AD (2016). Graphene Schottky diodes: An experimental review of the rectifying graphene/semiconductor heterojunction. Physics Reports, 606: 1-58. https://doi.org/10.1016/j.physrep.2015.10.003   [Google Scholar]
  4. Boroomandnia A, Kasaeian AB, Nikfarjam A, Akbarzadeh A, and Mohammadpour R (2015). Effect of crystallinity and morphology of TiO2 nano-structures on TiO2: P3HT hybrid photovoltaic solar cells. Applied Solar Energy, 51(1): 34-40. https://doi.org/10.3103/S0003701X15010065   [Google Scholar]
  5. Cheema H and Joya KS (2018). Titanium dioxide modifications for energy conversion: Learnings from dye-sensitized solar cells. In: Yang D (Ed.), Titanium dioxide: Material for a sustainable environment: 387-420. BoD–Books on Demand, Norderstedt, Germany. https://doi.org/10.5772/intechopen.74565   [Google Scholar]
  6. Hwang JD and Lee KS (2008). A high rectification ratio nanocrystalline p–n junction diode prepared by metal-induced lateral crystallization for solar cell applications. Journal of the Electrochemical Society, 155(4): 259-262. https://doi.org/10.1149/1.2840618   [Google Scholar]
  7. Kim H, Kim Y, and Choi BJ (2018). Interfacial characteristics of Au/Al2O3/InP metal-insulator-semiconductor diodes. AIP Advances, 8(9): 095022. https://doi.org/10.1063/1.5047538   [Google Scholar]
  8. Liu H, Bala H, Zhang B, Zong B, Huang L, Fu W, and Zhan Z (2018). Thickness-dependent photovoltaic performance of TiO2 blocking layer for perovskite solar cells. Journal of Alloys and Compounds, 736: 87-92. https://doi.org/10.1016/j.jallcom.2017.11.081   [Google Scholar]
  9. O'regan B and Grätzel M (1991). A low-cost, high-efficiency solar cell based on 19dye-sensitized colloidal TiO2 films. Nature, 353(6346): 737-740. https://doi.org/10.1038/353737a0   [Google Scholar]
  10. Shirkavand M, Bavir M, Fattah A, Alaei HR, and Tayarani Najaran MH (2019). Influence of TiO2 layer thickness as photoanode in dye sensitized solar cells. AUT Journal of Electrical Engineering, 51(1): 101-110.   [Google Scholar]
  11. Thu C, Ehrenreich P, Wong KK, Zimmermann E, Dorman J, Wang W, and Vasilopoulou M (2018). Role of the metal-oxide work function on photocurrent generation in hybrid solar cells. Scientific Reports, 8(1): 1-8. https://doi.org/10.1038/s41598-018-21721-2   [Google Scholar] PMid:29476065 PMCid:PMC5824951
  12. Vittal R and Ho KC (2017). Zinc oxide based dye-sensitized solar cells: A review. Renewable and Sustainable Energy Reviews, 70: 920-935. https://doi.org/10.1016/j.rser.2016.11.273   [Google Scholar]
  13. Yang BZ, Lin YS, and Wu JM (2017). Flexible contact-electrification field-effect transistor made from the P3HT: PCBM conductive polymer thin film. Applied Materials Today, 9: 96-103. https://doi.org/10.1016/j.apmt.2017.06.001   [Google Scholar]
