 Volume 6, Issue 9 (September 2019), Pages: 71-75

----------------------------------------------

 Original Research Paper

 Title: Eggshell powder as partial cement replacement and its effect on the workability and compressive strength of concrete

 Author(s): Ashfaque Ahmed Jhatial 1, *, Samiullah Sohu 2, Muhammad Jaffar Memon 1, Nadeem-ul-Karim Bhatti 2, Darya Memon 3

 Affiliation(s):

 1Department of Civil Engineering, Mehran University of Engineering and Technology, Shaheed Zulfiqar Ali Bhutto Campus, Khairpur Mirs, Sindh, Pakistan
 2Department of Civil Engineering, Quaid-e-Awam University of Engineering, Science and Technology, Nawabshah, Pakistan
 3Department of Civil Engineering, Sir Syed University of Engineering and Technology, Karachi, Pakistan

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0002-4327-5595

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2019.09.011

 Abstract:

Concrete is the most preferred building material in the world and its production has increased exponentially with the rapid construction of infrastructures. The generation of waste materials has also increased due to rapid urbanization. Eggshell is one such solid waste material which is being generated in huge quantity due to it being a cheap source of nutrition. Cement, the vital ingredient of concrete has been reported to contribute approximately 7% of total global Carbon Dioxide (CO2) gas emissions. This experimental study was carried out to study the workability and compressive strength of M40 grade concrete incorporating Eggshell Powder (ESP) as supplementary cementitious material, to reduce the cement content in concrete. ESP was ground into two fineness (50 um and 100 um) and three different percentages (5%, 10% and 15% by weight of cement) of ESP was used to replace cement content. It was observed that partial cement replacement using ESP was successful in achieving higher strength compared to the control sample. It was determined that 10% ESP was optimum, where the highest compressive strength was achieved. Furthermore, the fineness of ESP also had an influence on the compressive strength, the ESP which passed 50 um resulted in better strength. The optimum ESP to be utilized was determined to be 10% in both fineness.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Partial cement replacement, Supplementary cementitious materials, Eggshell powder, Natural resources depletion, Solid waste materials

 Article History: Received 28 March 2019, Received in revised form 7 July 2019, Accepted 9 July 2019

 Acknowledgement:

The authors would like to acknowledge and appreciate the support received from the staff of Department of Civil Engineering, Mehran University of Engineering and Technology, Shaheed Zulfiqar Ali Bhutto Campus, Khairpur Mir’s, Sindh, Pakistan during this experimental work.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.

 Citation:

 Jhatial AA, Sohu S, and Memon MJ et al. (2019). Eggshell powder as partial cement replacement and its effect on the workability and compressive strength of concrete. International Journal of Advanced and Applied Sciences, 6(9): 71-75

 Permanent Link to this page

 Figures

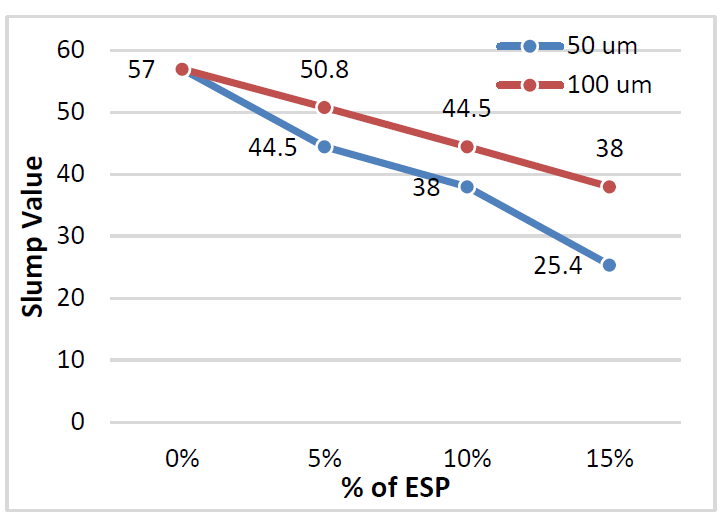

 Fig. 1

 Tables

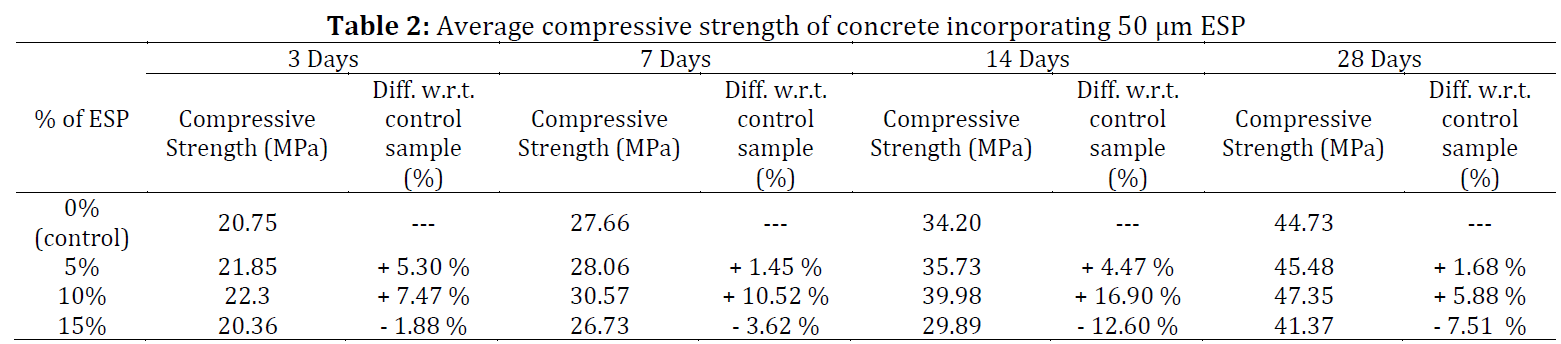

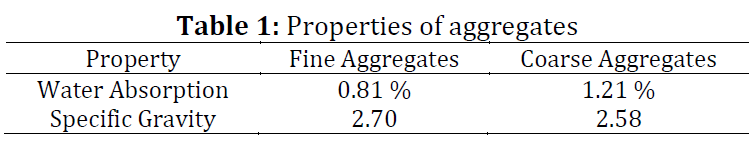

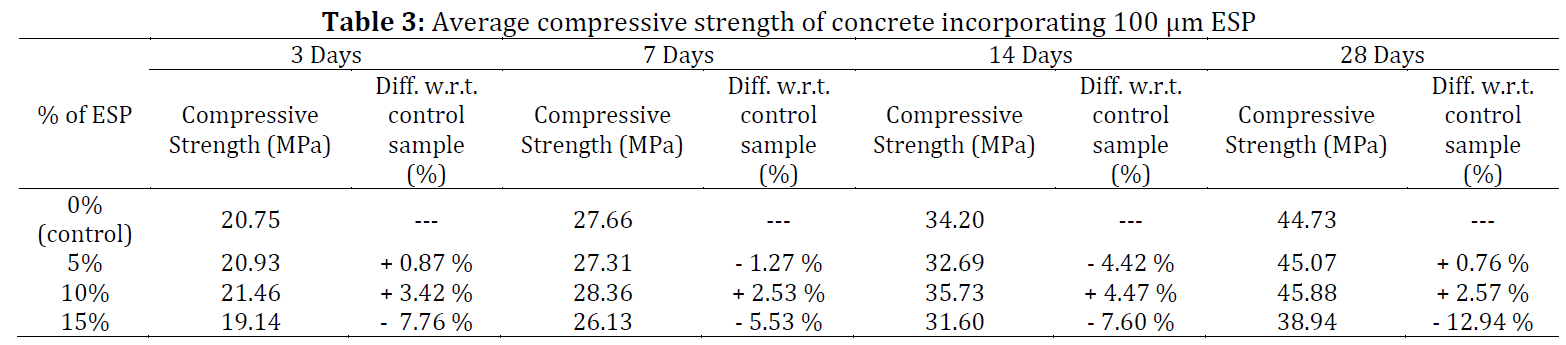

 Table 1 Table 2 Table 3

----------------------------------------------

 References (22)

  1. Ansari MM, Kumar MD, Charles JM, and Vani G (2016). Replacement of cement using eggshell powder. SSRG International Journal of Civil Engineering, 3(3): 1-3. https://doi.org/10.14445/23488352/IJCE-V3I3P101   [Google Scholar]
  2. Bandhavya GB, Sandeep K, and Bindhushree GB (2017). An experimental study on partial replacement of cement with egg shell powder in concrete. International Research Journal of Engineering and Technology, 4(6): 2318–2323.   [Google Scholar]
  3. Benhelal E, Zahedi G, Shamsaei E, and Bahadori A (2013). Global strategies and potentials to curb CO2 emissions in cement industry. Journal of Cleaner Production, 51: 142-161. https://doi.org/10.1016/j.jclepro.2012.10.049   [Google Scholar]
  4. BS EN (2009a). BS EN 12390-2-2009: Testing hardened concrete: Making and curing specimens for strength tests. British Standards, London, UK.
  5. BS EN (2009b). BS EN 12390-3-2009: Testing hardened concrete: Compressive strength of test specimens, British Standards, London, UK.
  6. Day RL and Shi C (1994). Influence of the fineness of pozzolan on the strength of lime natural-pozzolan cement pastes. Cement and Concrete Research, 24(8): 1485-1491. https://doi.org/10.1016/0008-8846(94)90162-7   [Google Scholar]
  7. Dhanalakshmi M, Sowmya NJ, and Chandrashekar A (2015). A comparative study on egg shell concrete with partial replacement of cement by fly ash. International Journal of Engineering Research and Technology, 4(5): 1532-1537. https://doi.org/10.17577/IJERTV4IS051303   [Google Scholar]
  8. GOP (2014). Economic survey of Pakistan. Ministry of Finance, Government of Pakistan, Lahore, Pakistan.   [Google Scholar]
  9. Jhatial AA, Goh WI, Mohamad N, Sohu S, and Lakhiar MT (2018). Utilization of palm oil fuel ash and eggshell powder as partial cement replacement: A review. Civil Engineering Journal, 4(8): 1977-1984. https://doi.org/10.28991/cej-03091131   [Google Scholar]
  10. Kubissa W, Jaskulski R, Koper A, and Szpetulski J (2015). Properties of concretes with natural aggregate improved by RCA addition. Procedia Engineering, 108: 30-38. https://doi.org/10.1016/j.proeng.2015.06.116   [Google Scholar]
  11. Lakhiar MT, Sohu S, Bhatti IA, Bhatti N, Abbasi SA, and Tarique M (2018). Flexural performance of concrete reinforced by plastic fibers. Engineering, Technology and Applied Science Research, 8(3): 3041-3043.   [Google Scholar]
  12. Lawrence P, Cyr M, and Ringot E (2005). Mineral admixtures in mortars effect of type, amount and fineness of fine constituents on compressive strength. Cement and Concrete Research, 35(6): 1092-1105. https://doi.org/10.1016/j.cemconres.2004.07.004   [Google Scholar]
  13. Memon IA, Jhatial AA, Sohu S, Lakhiar MT, and Khaskheli ZH (2018). Influence of fibre length on the behaviour of polypropylene fibre reinforced cement concrete. Civil Engineering Journal, 4(9): 2124-2131.   [Google Scholar]
  14. Naik TR and Moriconi G (2005). Environmental-friendly durable concrete made with recycled materials for sustainable concrete construction. In the International Symposium on Sustainable Development of Cement, Concrete and Concrete Structures, Toronto, Canada: 5-7.   [Google Scholar]
  15. Parthasarathi N, Prakash M, and Satyanarayanan KS, (2017). Experimental study on partial replacement of cement with egg shell powder and silica fume. Rasayan Journal of Chemistry, 10(2): 442-449.   [Google Scholar]
  16. PPA (2019). An overview of Pakistan poultry industry year 2017-18. Pakistan Poultry Association, Lahore, Pakistan. Available online at: https://bit.ly/30PmkAe
  17. Raji SA and Samuel AT (2015). Egg shell as a fine aggregate in concrete for sustainable construction. International Journal of Scientific and Technology Research, 4(9): 8-13.   [Google Scholar]
  18. Sandhu AR, Lakhiar MT, Jhatial AA, Karira H, and Jamali QB (2019). Effect of river Indus sand and recycled concrete aggregates as fine and coarse replacement on properties of concrete. Engineering, Technology and Applied Science Research, 9(1): 3831-3834.   [Google Scholar]
  19. Sohu S, Ullah K, Jhatial AA, Jaffar M, and Lakhiar MT (2018). Factors adversely affecting quality in highway projects of Pakistan. International Journal of Advanced and Applied Sciences, 5(10): 62-66. https://doi.org/10.21833/ijaas.2018.10.009   [Google Scholar]
  20. Ujin F, Ali KS, Harith H, and Yasmin Z (2017). The effect of eggshells ash on the compressive strength of concrete. Key Engineering Materials, 728: 402-407. https://doi.org/10.4028/www.scientific.net/KEM.728.402   [Google Scholar]
  21. Yerramala A (2014). Properties of concrete with eggshell powder as cement replacement. The Indian Concrete Journal, 88(10): 101-102.   [Google Scholar]
  22. Yu TY, Ing DS, and Choo CS (2017). The effect of different curing methods on the compressive strength of eggshell concrete. Indian Journal of Science and Technology, 10(6): 1-4. https://doi.org/10.17485/ijst/2017/v10i6/111210   [Google Scholar]
