 Volume 6, Issue 9 (September 2019), Pages: 20-24

----------------------------------------------

 Original Research Paper

 Title: A nonlinear saturation model of synchronous machines with account cross saturation

 Author(s): Abdelaziz Salah Saidi *

 Affiliation(s):

 Department of Electrical Engineering, King Khalid University, Abha, Saudi Arabia

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0003-1725-2418

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2019.09.003

 Abstract:

This paper developed an enhanced saturation model for synchronous machines based on simulation and experimental evaluation. The effect of taking account of cross-saturation is demonstrated. Local saturation factors are defined so as to adjust the flux-density distribution. The method of saturation modelling of dumper synchronous machine with and without cross-saturation is identified. Examples of numerical simulation are given to verify the model and its applications. Through experiments, it is shown that, by using the relationship between magnetizing current and flux as modelled in this paper, the nonlinear behavior of the synchronous machine is quite accurately estimated. Furthermore, the new model is compared with a classical model that neglects mutual saturation effects between a quadrature and direct axis windings.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Modelling, State-space vectors, Nonlinear model, Synchronous machine

 Article History: Received 20 January 2019, Received in revised form 25 June 2019, Accepted 27 June 2019

 Acknowledgement:

No Acknowledgement.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.

 Citation:

 Saidi AS (2019). A nonlinear saturation model of synchronous machines with account cross saturation. International Journal of Advanced and Applied Sciences, 6(9): 20-24

 Permanent Link to this page

 Figures

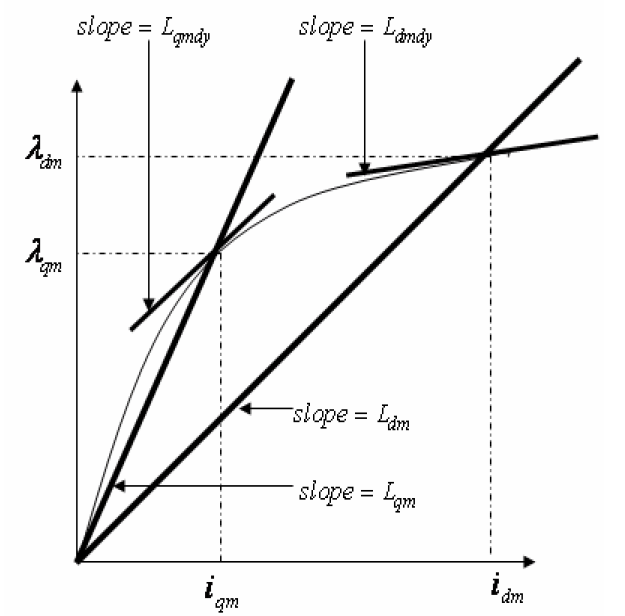

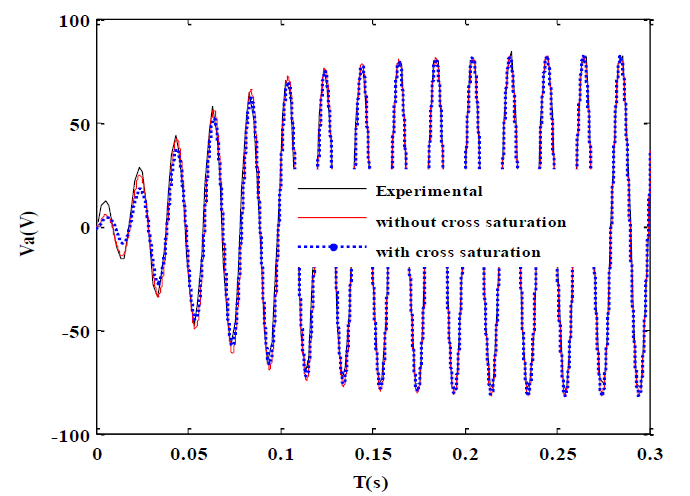

 Fig. 1 Fig. 2

 Tables

 No Table

----------------------------------------------

 References (13)

  1. Abdelaziz S, Khadija BK, Chokri B, and Mohamed E (2011). Voltage regulation and dynamic performance of the Tunisian power system with wind power penetration. Trends in Applied Science Research, 6: 813-831. https://doi.org/10.3923/tasr.2011.813.831   [Google Scholar]
  2. Al Ahmadi S, Khlifi MA, and Draou A (2019). Voltage and frequency regulation for autonomous induction generators in small wind power plant. International Journal of Advanced and Applied Sciences, 6(1): 95-98. https://doi.org/10.21833/ijaas.2019.01.013   [Google Scholar]
  3. Khlifi MA (2018). Behavior of a dual stator induction machine fed by neutral point clamped multilevel inverter. Journal of Energy, 2018: Article ID 6968023. https://doi.org/10.1155/2018/6968023   [Google Scholar]
  4. Khlifi MA and Alshammari BM (2014). Steady state analysis of an isolated self-excited dual three-phase induction generator for renewable energy. International Journal of Modern Nonlinear Theory and Application, 3(05): 191-198. https://doi.org/10.4236/ijmnta.2014.35021   [Google Scholar]
  5. Khlifi MA, Slimene MB, Fredj MB, and Rhaoulia H (2016). Performance evaluation of self-excited DSIG as a stand-alone distributed energy resources. Electrical Engineering, 98(2): 159-167. https://doi.org/10.1007/s00202-015-0349-y   [Google Scholar]
  6. Levy D (1986). Analysis of a double-stator induction machine used for a variable-speed/constant-frequency small-scale hydro/wind electric power generator. Electric Power Systems Research, 11(3): 205-223. https://doi.org/10.1016/0378-7796(86)90035-0   [Google Scholar]
  7. Marwa BS, Mohamed AK, Mouldi BF, and Habib R (2014). Effect of the stator mutual leakage reactance of dual stator induction generator. International Journal of Electrical Energy, 2(3): 1810-1818. https://doi.org/10.12720/ijoee.2.3.189-193   [Google Scholar]
  8. Marwa BS, Mohamed Arbi K, Mouldi B, and Habib R (2013). The process of self-excitation in dual three-phase induction generator. International Review of Electrical Engineering, 8: 1738-1744.   [Google Scholar]
  9. Nandi S (2004). A detailed model of induction machines with saturation extendable for fault analysis. IEEE Transactions on Industry Applications, 40(5): 1302-1309. https://doi.org/10.1109/TIA.2004.834101   [Google Scholar]
  10. Salah Saidi A and Helmy W (2018). Artificial neural network–aided technique for low voltage ride-through wind turbines for controlling the dynamic behavior under different load conditions. Wind Engineering. https://doi.org/10.1177/0309524X18791387   [Google Scholar]
  11. Singh GK, Kumar AS, and Saini RP (2010). A self‐excited six‐phase induction generator for stand‐alone renewable energy generation: Experimental analysis. European Transactions on Electrical Power, 20(7): 884-900. https://doi.org/10.1002/etep.372   [Google Scholar]
  12. Slimene MB, Khlifi A, Ben Fredj M, and Rehaoulia H (2015a). Analysis of saturated self-excited dual stator induction generator for wind energy generation. Journal of Circuits, Systems and Computers, 24(9): 196-203. https://doi.org/10.1142/S0218126615501297   [Google Scholar]
  13. Slimene MB, Khlifi MA, Fredj MB, and Rehaoulia H (2015b). Modeling of a dual stator induction generator with and without cross magnetic saturation. Journal of Magnetics, 20(3): 284-289. https://doi.org/10.4283/JMAG.2015.20.3.284   [Google Scholar]
