 Volume 6, Issue 7 (July 2019), Pages: 99-103

----------------------------------------------

 Review Paper

 Title: Applications and opportunities of supercritical fluid extraction in food processing technologies: A review

 Author(s): Abdul Majid 1, *, Abdul Rahman Phull 1, Aamir Hassan Khaskheli 1, Sanaullah Abbasi 1, Muzaffar Hussain Sirohi 2, Israr Ahmed 3, Safdar Hussain Ujjan 4, Imdad Ali Jokhio 5, Waqar Ahmed 6

 Affiliation(s):

 1Department of Biochemistry, Shah Abdul Latif University, Khairpur, Pakistan
 2Department of Botany, Shah Abdul Latif University, Khairpur, Pakistan
 3Department of Mathematics, Shah Abdul Latif University, Khairpur, Pakistan
 4Department of Zoology, Shah Abdul Latif University, Khairpur, Pakistan
 5Department of Public Administration, Shah Abdul Latif University, Khairpur, Pakistan
 6School of Mathematics and Physics, University of Lincoln, Lancashire, UK

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0003-3836-7505

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2019.07.013

 Abstract:

The food industry is always in search of best processing technologies to achieve a natural compound with maximum purity. An increase in interest of functional food has brought a sharp rise demand of naturally occurring compounds achieved via natural processes. The traditional solvent extraction processes have shown certain limitations; such as flammability, toxicity, carcinogenicity, mutagenicity and limited recovery. The studies on cost-effective and eco-friendly processes are still limited. This review focuses on an innovative, environmentally clean tool for food processing technologies and their role in improving food sustainability. Supercritical Fluid Extraction (SFE) technique, however, is already in use for more than 40 years by academia and industries. This can be a successful tool for food processing and can be used for the extraction of selective components. Development of a sustainable and environmentally clean process to achieve natural ingredients is an area undergoing intense studies in food science. Here, we discuss principle applications of SFE to extract natural ingredients from different food materials and by-products. A supercritical fluid is non-flammable, non-toxic, eco-friendly and easily recoverable. These can be easily eliminated from the extract by altering the pressure and temperature conditions. Supercritical fluids are preferred method of extraction from solid samples, different fractional liquids and for chromatographic separations. The cost of SFE is competitive, moreover, in some cases, SFE is the only way to achieve product satisfaction. The design and development of analytical and industrial plants are reviewed. An overview of commercial applications and illustrations of recent development describes new horizons for SFE in food processing industries.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Supercritical fluid extraction, Food processing, Green extraction, Natural ingredients

 Article History: Received 5 March 2019, Received in revised form 22 May 2019, Accepted 25 May 2019

 Acknowledgement:

No Acknowledgement.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.

 Citation:

 Majid A, Phull AR, Khaskheli AH et al. (2019). Applications and opportunities of supercritical fluid extraction in food processing technologies: A review. International Journal of Advanced and Applied Sciences, 6(7): 99-103

 Permanent Link to this page

 Figures

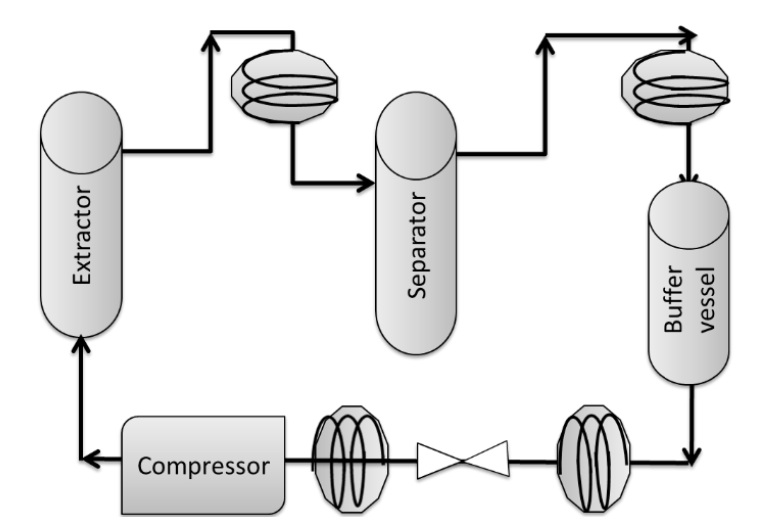

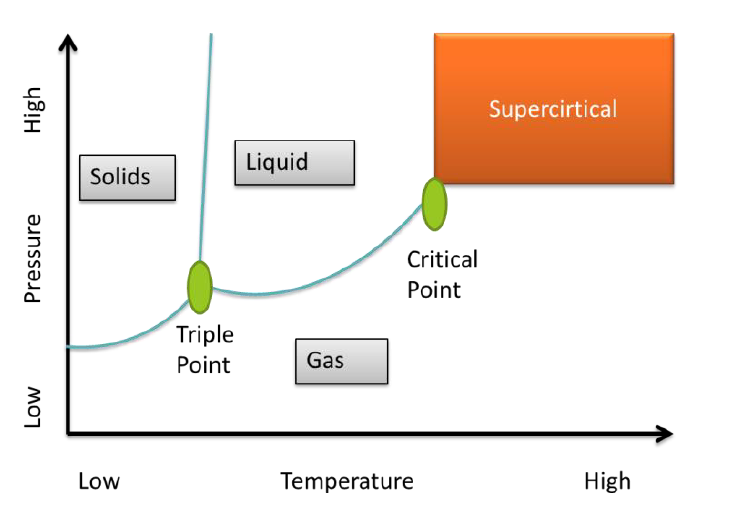

 Fig. 1 Fig. 2

 Tables

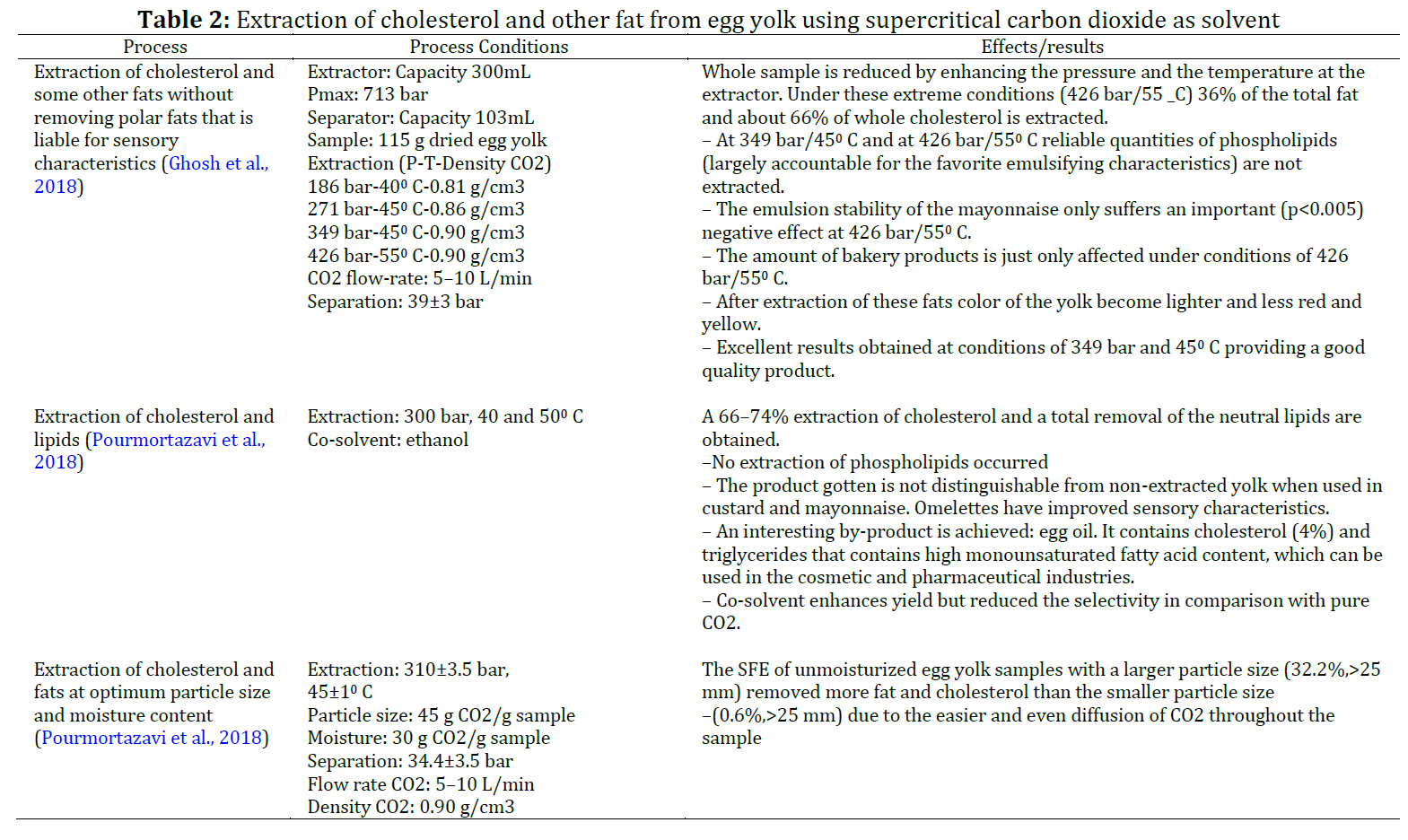

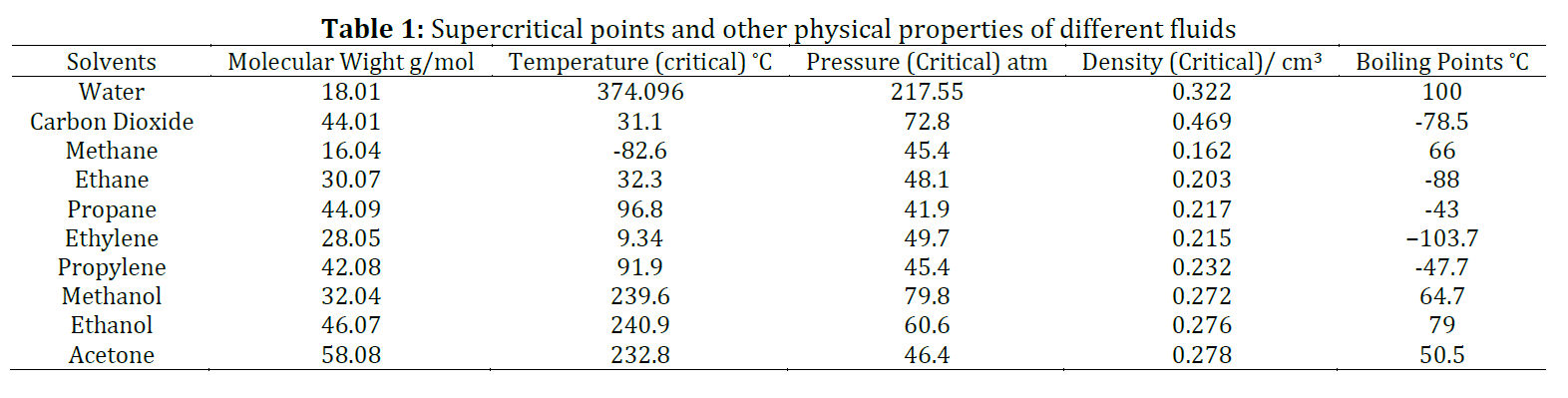

 Table 1 Table 2

----------------------------------------------

 References (26)

  1. Amaral GV, Silva EK, Cavalcanti RN, Cappato LP, Guimaraes JT, Alvarenga VO, and Silva MC (2017). Dairy processing using supercritical carbon dioxide technology: Theoretical fundamentals, quality and safety aspects. Trends in Food Science and Technology, 64: 94-101. https://doi.org/10.1016/j.tifs.2017.04.004   [Google Scholar]
  2. Da Silva RP, Rocha-Santos TA, and Duarte AC (2016). Supercritical fluid extraction of bioactive compounds. TrAC Trends in Analytical Chemistry, 76: 40-51. https://doi.org/10.1016/j.trac.2015.11.013   [Google Scholar]
  3. Garmus TT, de Oliveira Giani NA, Rammazzina Filho WA, Queiroga CL, and Cabral FA (2019). Solubility of oleic acid, triacylglycerol and their mixtures in supercritical carbon dioxide and thermodynamic modeling of phase equilibrium. The Journal of Supercritical Fluids, 143: 275-285. https://doi.org/10.1016/j.supflu.2018.08.018   [Google Scholar]
  4. Ghosh M, Srivastava Shubhangi CJ, and Mishra HN (2018). Advent of clean and green technology for preparation of low-cholesterol dairy cream powder: Supercritical fluid extraction process. Food Quality and Safety, 2(4): 205-211. https://doi.org/10.1093/fqsafe/fyy012   [Google Scholar]
  5. Gustinelli G, Eliasson L, Svelander C, Andlid T, Lundin L, Ahrné L, and Alminger M (2018). Supercritical fluid extraction of berry seeds: Chemical composition and antioxidant activity. Journal of Food Quality, 2018: Article ID 6046074. https://doi.org/10.1155/2018/6046074   [Google Scholar]
  6. Ilgaz S, Sat IG, and Polat A (2018). Effects of processing parameters on the caffeine extraction yield during decaffeination of black tea using pilot-scale supercritical carbon dioxide extraction technique. Journal of Food Science and Technology, 55(4): 1407-1415. https://doi.org/10.1007/s13197-018-3055-8   [Google Scholar] PMid:29606755 PMCid:PMC5876211
  7. Jahurul MHA, Zaidul ISM, Sahena F, Sharifudin MS, Norulaini NN, Ali ME, and Omar AKM (2018). Physicochemical properties of cocoa butter replacers from supercritical carbon dioxide extracted mango seed fat and palm oil mid-fraction blends. International Food Research Journal, 25(1): 143-149.   [Google Scholar]
  8. Lipka E, Dascalu AE, Messara Y, Tsutsqiridze E, Farkas T, and Chankvetadze B (2019). Separation of enantiomers of native amino acids with polysaccharide-based chiral columns in supercritical fluid chromatography. Journal of Chromatography A, 1585: 207-212. https://doi.org/10.1016/j.chroma.2018.11.049   [Google Scholar] PMid:30497824
  9. Liu H, Hebb RL, Putri N, and Rizvi SS (2018). Physical properties of supercritical fluid extrusion products composed of milk protein concentrate with carbohydrates. International Journal of Food Science and Technology, 53(3): 847-856. https://doi.org/10.1111/ijfs.13624   [Google Scholar]
  10. Majid A, Naz F, Phull AR, Abbasi S, Khaskheli AH, Sirohi MH, Ahmed I, Ahmed W, and Narejo GF (2019). Extraction and quantification of tocopherols from edible oils using high performance liquid chromatography. International Journal of Biosciences, 14(4):181-187. https://doi.org/10.12692/ijb/14.4.181-187   [Google Scholar]
  11. Marcus Y (2018). Extraction by subcritical and supercritical water, methanol, ethanol and their mixtures. Separations, 5(1): 4-21. https://doi.org/10.3390/separations5010004   [Google Scholar]
  12. Mushtaq M, Sultana B, Anwar F, Adnan A, and Rizvi SS (2015). Enzyme-assisted supercritical fluid extraction of phenolic antioxidants from pomegranate peel. The Journal of Supercritical Fluids, 104: 122-131. https://doi.org/10.1016/j.supflu.2015.05.020   [Google Scholar]
  13. Patil PD, Dandamudi KPR, Wang J, Deng Q, and Deng S (2018). Extraction of bio-oils from algae with supercritical carbon dioxide and co-solvents. The Journal of Supercritical Fluids, 135: 60-68. https://doi.org/10.1016/j.supflu.2017.12.019   [Google Scholar]
  14. Pourmortazavi SM, Saghafi Z, Ehsani A, and Yousefi M (2018). Application of supercritical fluids in cholesterol extraction from foodstuffs: A review. Journal of Food Science and Technology, 55(8): 2813-2823. https://doi.org/10.1007/s13197-018-3205-z   [Google Scholar] PMid:30065391
  15. Prabhu KH and Bhute AS (2012). Plant based natural dyes and mordants: A review. Journal of Natural Product and Plant Resources, 2(6): 649-664.   [Google Scholar]
  16. Režek Jambrak A, Vukušić T, Donsi F, Paniwnyk L, and Djekic I (2018). Three pillars of novel nonthermal food technologies: Food safety, quality, and environment. Journal of Food Quality, 2018: Article ID 8619707. https://doi.org/10.1155/2018/8619707   [Google Scholar]
  17. Saini RK, Moon SH, and Keum YS (2018). An updated review on use of tomato pomace and crustacean processing waste to recover commercially vital carotenoids. Food Research International, 108: 516-529. https://doi.org/10.1016/j.foodres.2018.04.003   [Google Scholar] PMid:29735087
  18. Sharifi A, Niakousari M, Mortazavi SA, and Elhamirad AH (2019). High-pressure CO2 extraction of bioactive compounds of barberry fruit (Berberis vulgaris): Process optimization and compounds characterization. Journal of Food Measurement and Characterization, 13(2): 1139–1146. https://doi.org/10.1007/s11694-018-00029-9   [Google Scholar]
  19. Silva W, Romero J, Morales E, Melo R, Mendoza L, and Cotoras M (2017). Red wine extract obtained by membrane-based supercritical fluid extraction: Preliminary characterization of chemical properties. Brazilian Journal of Chemical Engineering, 34(2): 567-581. https://doi.org/10.1590/0104-6632.20170342s20150631   [Google Scholar]
  20. Sookwong P and Mahatheeranont S (2017). Supercritical CO2 extraction of rice bran oil–The technology, manufacture, and applications. Journal of Oleo Science, 66(6): 557-564. https://doi.org/10.5650/jos.ess17019   [Google Scholar]
  21. Sun M and Temelli F (2006). Supercritical carbon dioxide extraction of carotenoids from carrot using canola oil as a continuous co-solvent. The Journal of Supercritical Fluids, 37(3): 397-408. https://doi.org/10.1016/j.supflu.2006.01.008   [Google Scholar]
  22. Szabo K, Cătoi AF, and Vodnar DC (2018). Bioactive compounds extracted from tomato processing by-products as a source of valuable nutrients. Plant Foods for Human Nutrition, 73(4): 268-277. https://doi.org/10.1007/s11130-018-0691-0   [Google Scholar] PMid:30264237
  23. Varshosaz J, Ghassami E, and Ahmadipour S (2018). Crystal engineering for enhanced solubility and bioavailability of poorly soluble drugs. Current Pharmaceutical Design, 24(21): 2473-2496. https://doi.org/10.2174/1381612824666180712104447   [Google Scholar] PMid:29998799
  24. Vega LF (2018). Perspectives on molecular modeling of supercritical fluids: From equations of state to molecular simulations, recent advances, remaining challenges and opportunities. The Journal of Supercritical Fluids, 134: 41-50. https://doi.org/10.1016/j.supflu.2017.12.025   [Google Scholar]
  25. Vieitez I, Maceiras L, Jachmanián I, and Alborés S (2018). Antioxidant and antibacterial activity of different extracts from herbs obtained by maceration or supercritical technology. The Journal of Supercritical Fluids, 133: 58-64. https://doi.org/10.1016/j.supflu.2017.09.025   [Google Scholar]
  26. Zou X, Liu Y, Tao C, Liu Y, Liu M, Wu J, and Lv Z (2018). CO2 supercritical fluid extraction and characterization of polysaccharide from bamboo (Phyllostachys heterocycla) leaves. Journal of Food Measurement and Characterization, 12(1): 35-44. https://doi.org/10.1007/s11694-017-9614-2   [Google Scholar]
