Volume 6, Issue 4 (April 2019), Pages: 65-74

----------------------------------------------

 Original Research Paper

 Title: A photonic frequency discriminator based laser linewidth estimation technique

 Author(s): M. R. H. Khan *, M. A. Hoque

 Affiliation(s):

 Electrical and Electronic Engineering Department, Islamic University of Technology, Dhaka, Gazipur 1704, Bangladesh

  Full Text - PDF          XML

 * Corresponding Author.

  Corresponding author's ORCID profile: https://orcid.org/0000-0002-1946-0096

 Digital Object Identifier:

 https://doi.org/10.21833/ijaas.2019.04.008

 Abstract:

The conventional methods on the measurement of linewidth of an individual laser or free-running beat spectrum are unable to realize both direct and accurate measurement/estimation all at once. An optical measurement or estimation technique is necessary for very high frequency optical system. The direct measurement of the optical spectrum from an RF-SA suffers from the frequency jitter, hence provides an inaccurate measurement. On the other hand methods to estimate the RF beat linewidth without directly measuring the RF spectrum are limited in terms of frequency range. We propose to use an optical discriminator to estimate the beat spectrum linewidth of a free running heterodyning system. Using a dense wavelength multiplexing (DWDM) filter as an optical discriminator, the transformation of phase modulation (PM) to intensity modulation (IM) is achieved. So, transformed laser phase noise into RIN (relative intensity noise). The proposed concept for beat spectrum linewidth estimate is shown and compared to other direct/indirect beat spectrum measurement techniques. Our proposed technique estimates the beat linewidth more accurately and by direct measurements of the beat spectrum. Moreover, the proposed technique operates in optical domain, thus not limited in frequency range. This technique is not affected by frequency jitter unlike the other methods for beat spectrum linewidth measurement.

 © 2019 The Authors. Published by IASE.

 This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).

 Keywords: Frequency discriminator, Free running heterodyning, Beat spectrum, Narrow linewidth, Frequency jitter

 Article History: Received 2 November 2018, Received in revised form 10 February 2019, Accepted 10 February 2019

 Acknowledgement:

The authors gratefully acknowledge the support of the Smart Mix Programme of the Netherlands Ministry of Economic Affairs and the Netherlands Ministry of Education, Culture and Science.

 Compliance with ethical standards

 Conflict of interest:  The authors declare that they have no conflict of interest.

 Citation:

  Khan MRH and Hoque MA (2019). A photonic frequency discriminator based laser linewidth estimation technique. International Journal of Advanced and Applied Sciences, 6(4): 65-74

 Permanent Link to this page

 Figures

 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Fig. 18 Fig. 19 Fig. 20 Fig. 21

 Tables

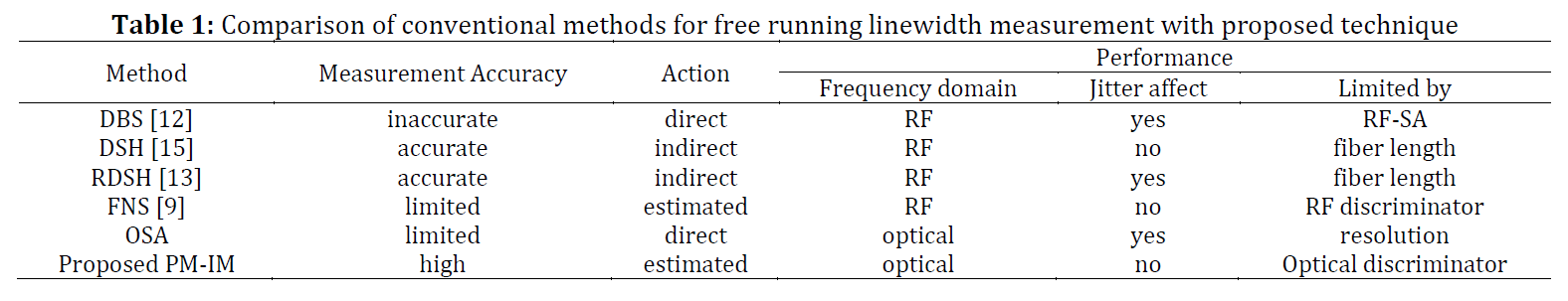

 Table 1

----------------------------------------------

 References (19)

1. Ayotte S, Babin A, Poulin P, Poulin M, Jeanneau A, Picard MJ, and Costin F (2010). Laser synthesizer of the ALMA telescope: Design and performance. In the IEEE Topical Meeting on Microwave Photonics, IEEE, Montreal, Canada: 249-252. https://doi.org/10.1109/MWP.2010.5664623   [Google Scholar]
2. Bernhardi EH, van Wolferen HA, Agazzi L, Khan MRH, Roeloffzen CGH, Wörhoff K, and De Ridder RM (2010). Ultra-narrow-linewidth, single-frequency distributed feedback waveguide laser in Al 2 O 3: Er 3+ on silicon. Optics letters, 35(14): 2394-2396. https://doi.org/10.1364/OL.35.002394   [Google Scholar] PMid:20634841
3. Chen X, Han M, Zhu Y, Dong B, and Wang A (2006). Implementation of a loss-compensated recirculating delayed self-heterodyne interferometer for ultranarrow laser linewidth measurement. Applied Optics, 45(29): 7712-7717. https://doi.org/10.1364/AO.45.007712   [Google Scholar] PMid:17068608
4. Horak P and Loh WH (2006). On the delayed self-heterodyne interferometric technique for determining the linewidth of fiber lasers. Optics Express, 14(9): 3923-3928. https://doi.org/10.1364/OE.14.003923   [Google Scholar]PMid:19516539
5. Ip E, Kahn JM, Anthon D, and Hutchins J (2005). Linewidth measurements of MEMS-based tunable lasers for phase-locking applications. IEEE Photonics Technology Letters, 17(10): 2029-2031. https://doi.org/10.1109/LPT.2005.856435   [Google Scholar]
6. Keller MW, Pufall MR, Rippard WH, and Silva TJ (2010). Nonwhite frequency noise in spin torque oscillators and its effect on spectral linewidth. Physical Review B, 82(5): 054416. https://doi.org/10.1103/PhysRevB.82.054416   [Google Scholar]
7. Khan MR, Bernhardi EH, Marpaung DA, Burla M, de Ridder RM, Worhoff K, and Roeloffzen CG (2012). Dual-frequency distributed feedback laser with optical frequency locked loop for stable microwave signal generation. IEEE Photonics Technology Letters, 24(16): 1431-1433. https://doi.org/10.1109/LPT.2012.2205379   [Google Scholar]
8. Khan MRH, Burla M, Roeloffzen CGH, Marpaung DAI, and van Etten W (2009). Phase noise analysis of an RF local oscillator signal generated by optical heterodyning of two lasers. In the Proceeding of the 14^th Annual Symposium of the IEEE Photonics Benelux Chapter, Brussels, Belgium: 161-164.   [Google Scholar]
9. Khan MRH, Islam MF, Sarowar G, Reza T, and Hoque MA (2017a). Carrier generation using a dual-frequency distributed feedback waveguide laser for phased array antenna (PAA). Journal of the European Optical Society-Rapid Publications, 13(1): 30-46. https://doi.org/10.1186/s41476-017-0058-4   [Google Scholar]
10. Khan MRH, Islam MF, Sarowar G, Reza T, and Hoque MA (2017b). Performance analysis of microwave carrier for Ku-band satellite signal. International Journal of Computer Science and Network Security, 17(4): 4-13.   [Google Scholar]
11. Khan MRH, Marpaung DAI, Burla M, Roeloffzen CGH, Bernhardi EH, and de Ridder RM (2011). Investigation on the performance of an optically generated RF local oscillator signal in K u-band DVB-S systems. In the General Assembly and Scientific Symposium, IEEE, Istanbul, Turkey: 1-4. https://doi.org/10.1109/URSIGASS.2011.6050670   [Google Scholar]
12. Marpaung D, Roeloffzen C, Leinse A, and Hoekman M (2010). A photonic chip based frequency discriminator for a high performance microwave photonic link. Optics Express, 18(26): 27359-27370. https://doi.org/10.1364/OE.18.027359   [Google Scholar] PMid:21197014
13. Okoshi T, Kikuchi K, and Nakayama A (1980). Novel method for high resolution measurement of laser output spectrum. Electronics Letters, 16(16): 630-631. https://doi.org/10.1049/el:19800437   [Google Scholar]
14. Palacio R, Deborgies F, and Piironen P (2010). Optical distribution of microwave signals for Earth observation satellites. In the IEEE Topical Meeting on Microwave Photonics, IEEE, Montreal, Canada: 74-77. https://doi.org/10.1109/MWP.2010.5664200   [Google Scholar]
15. Paschotta R (2008). Encyclopedia of laser physics and technology. Wiley VCH, Weinheim, Germany.   [Google Scholar]
16. Richter L, Mandelberg H, Kruger M, and McGrath P (1986). Linewidth determination from self-heterodyne measurements with subcoherence delay times. IEEE Journal of Quantum Electronics, 22(11): 2070-2074. https://doi.org/10.1109/JQE.1986.1072909   [Google Scholar]
17. Tarighat A, Hsu RC, Sayed AH, and Jalali B (2006). Digital adaptive phase noise reduction in coherent optical links. Journal of Light Wave Technology, 24(3): 1269-1276. https://doi.org/10.1109/JLT.2005.863268   [Google Scholar]
18. Tsuchida H (1990). Simple technique for improving the resolution of the delayed self-heterodyne method. Optics Letters, 15(11): 640-642. https://doi.org/10.1364/OL.15.000640   [Google Scholar] PMid:19768033
19. Wyrwas JM and Wu MC (2009). Dynamic range of frequency modulated direct-detection analog fiber optic links. Journal of Lightwave Technology, 27(24): 5552-5562. https://doi.org/10.1109/JLT.2009.2031986   [Google Scholar]
